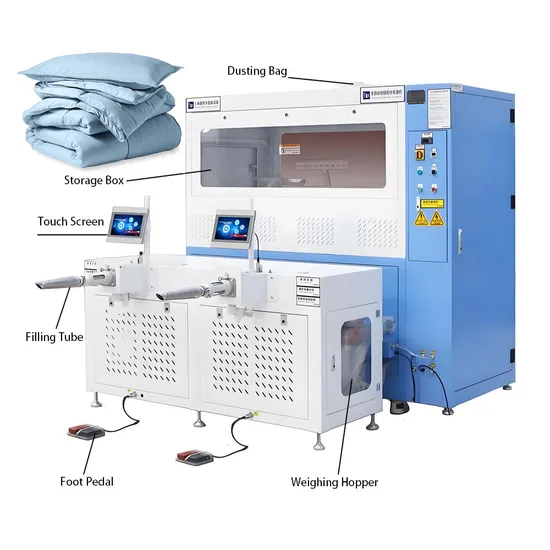

Hot Pick FUDA Minimalist Two Heads Synthetic Fiber Quilt Filling Machine
| US$8,888.00-21,999.00 | 1 set (MOQ) |
Basic Info.
Model NO.
2 Ports with 8 Weighing Hoppers
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
Two Nozzles
Product Name
Synthetic Fiber Quilt Filling Machine
Weighing Cycles
8 Scales
Filling Range
0.2-35grams
Show Weight Accuracy
0.01gram
Nozzles Size
19mm,25mm,32mm
Display Device
10" Touch Screen
Filling Materials
Duck Down, Goose Down
Material Type
Ball Fiber, Short Fiber
Application
Down Jacket, Down Quilt, Down Vests, Sleeping Bag
Air Supply
0.6-0.8Mpa
Storage Volume
10-15Kg
Power
1Phase AC220V 3Kw
N.W(Kgs)
750Kg
G.W(Kgs)
950Kg
Dimension(L*W*H)
3000*3500*2000mm
Transport Package
Wooden Case
Specification
2 Ports 8 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
225.00cm * 116.00cm * 226.00cm
Package Gross Weight
950.000kg
Product Description
Product Overview8T6D Automatic Goose Down Filling Machine with 2 Ports 8 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 600-800 jackets. the 2 Heads 8 Scales automatic filling machine is suitable for a 100-150 person garment factory that focuses on the quality garment process. Product Description
Product Advantages
| High precision | The dynamic error accuracy is ±2%. |
| Control system - Compiled PLC | Quickly, the communication speed rate: 0.4ms. |
| Touch screen - HD HMI | Easy to learn and operate, Multi-language, sensitive touch. |
| Feeding Material - accuracy | the error accuracy is controllable. |
| Returning Material - Quickly | The one-key operation is to empty the remaining material in all scales. |
| Dedusting recycling - Clean | Dustless working environment, reducing raw material wastage. |
| Gear motor - low noise | Low noise, high torque, long life, and easy maintenance. |
| Appearance - The Beauty of Simplicity | Compact design, clean white, technology blue. |
| Model NO. | H8T6D |
| Product Name | Automatic Goose Down Filling Machine |
| Filling Ports | Double-Heads |
| Filling Range | 0.2-35g |
| Display Accuracy | 0.01g |
| Nozzle Size | 19mm/25mm with air return, 32mm for duvet |
| Storage Volume | 10-15Kg |
| Filling Materials | Duck Down, Goose Down, Polyester Fiber, Ball Fiber |
| Application | Down Jacket, Down Pants, Down Duvets |
| Daily Capacity | 600 plus down jackets |
| Power Supply | 1Ph AC220v 3.0Kw |
| Air Supply | 0.6-0.8Mpa, 7.5Kw |
| Display Device | 10" Touch Panel |
| Control System | PLC with 8 Weighing Units |
| Footprint | 2.5*3.5*2.0m(L*W*H) |
| Net Weight | 750Kg |
| Gross Weight | 950Kg |
| Transport Package | Wooden Case |
| Specification | 2 Ports 8 Scales |
| Trademark | FUDA |
| Origin | Shanghai |
Detailed Photos
FUDA Profile
