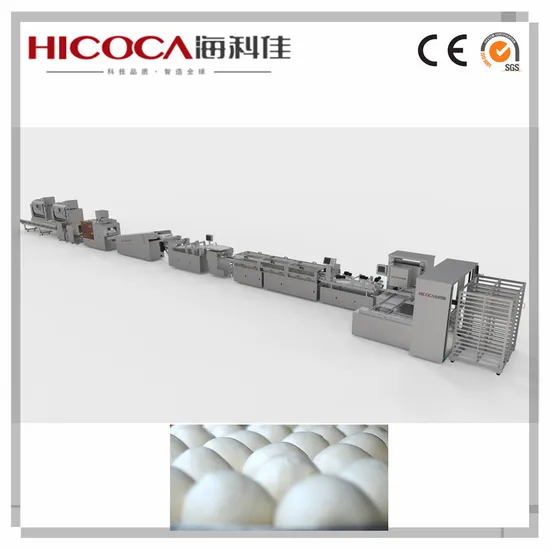

Multifunctional Bionic Round Steamed Bread Production Line

Product Description

Product Description
Steam Bread Intelligent Equipment:
6 years
After 6 years of research and development and testing, HICOCA successfully developed and produced the automatic production line of the steam bread and working process including knead dough, aging, conveying, slicing, dough circulating pressing, forming, which helped to saving 80% of the labor, in the meanwhile meet the customer's demand for good taste.
Highlight:
1. High degree of automation, improve the quality of work and save 50% of workers.
2. Imitation of manual kneading and pressing process, so that the dough is fully cooked and the finished products are finely organized and chewy.
3. Production line modularity: Each production line consists of several functional modules, changing modules can quickly realize the switch of product types, which is more safe and reliable, and more convenient for adjustment and maintenance.
4. Multi-node precise control: Servo and inverter combination of regulation and control, to achieve synchronization of the whole line of production line belt, smooth production without piling up and no broken material, to ensure production efficiency and production stability.
5. Humanized operation interface: The operation information is integrated to improve the convenience and reduce the adjustment time and material waste.

Technological Process

Capacity	0.8-1 tons/hour
Voltage	380V
Power	35.5KW
Compressed air	0-4-0.6MPa
Production line length	customized according to workshop

Detailed Photos
Kneading machine
Product highlights:
imitating manual kneading and pressing type mixing and dough, the dough cooks more quickly and has a more uniform texture.
Simple structure of the inner cavity of the mixing pot makes it safer to clean the dough and more convenient to clean up.
Fully automatic ingredients proportioning, one key convenient operation.
Main technical parameters:
Voltage: 380V
Power: 9KW
Compressed air;0.4-0.6MPa
Size: 1760×910×1750(l×w×h)mm
Conveyor
Product Highlights
1. Uniform width and height of output noodle belt.
2. Automatic frequency conversion speed regulation, eliminating the problem of broken noodle belt and piling up.
3. No manual intervention, saving labor and improving food safety and hygiene guarantee.
Main technical parameters
1,Voltage: 380V
2,Power:1.5KW
3,Specification : 400×200(w×h)mm
4,Speed: 2-4m/min
5,Size:5016x840x980(l×w×h)mm

Pressing and slitting machine
Product highlights
1. Consistent height and uniform width of calendered noodle belt
2. Automatic start/stop, automatic counting, automatic slitting, automatic feeding.
3. No manual intervention, save labor and improve food safety and hygiene.
Main technical parameters
1,Voltage: 380V
2,Power: 1.65KW
3,Thickness of noodle: 40-80mm
4,Noodle length: set according to demand
5,Size:1030×810×1050(l×w×h)mm
High speed kneading machine
Product highlights
1. Imitating handwork, vertical cross-folding calendering makes the gluten into a net-like distribution, the gluten network is more closely combined with starch granules, and the dough structure is uniform and stable.
2., High whiteness and high degree of maturation after calendering.
3. The width of the output dough strip is uniform and the thickness is even, so it can be directly used in the next process without secondary finishing.
4. Good air-holding and stability, even internal structure, fine holes, chewy and good taste, bright white color.
5. High capacity, 50% efficiency improvement.
Main technical parameters:
1,Voltage: 380V
2,Power: 8.3KW
3,Thickness of noodles: 15-20mm
4,Capacity: 10-50kg/time
5,Number of pressing: 3-20 times (according to the customer's process requirements to adjust the setting)
6,Size:2400×1300×1600(l×w×h)mm
Automatic steamer
Product highlights
1. Without the work station operator, the plate setting machine output steam plate automatically loading.
2. Loading plate is smooth and reliable.
Main technical parameters
1,Voltage: 220V
2,Power: 4KW
3,Size: 3366×1665×2200(l×w×h)mm
Certifications

Packaging & Shipping
Company Profile
Reliable Quality----------We Established in 2004, is one of the most professional noodle making and packing machine manufacturer in China. Our machine adopt the latest technology from Japan, Germany and other developed countries.

Big Market Potential----Our Machines occupy 80% of market share in Chinese noodle packing industry. And export to EU, Africa, Southeast Asia, Mid-east etc, for over hundred sets machines every year. Many first-class companies are using our machine, such as Cofco, Baixiang food group, Selva, Zed Black etc.

Product Variety------------Our products include Automatic Noodle Production Line,Automatic Instant Noodle Production Line, Automatic Rice Noodle Production Line,automatic noodle weighing and packing machine, automatic noodle bundling and packing machine, automatic sealing &shrink packing machine and other packing machine etc. And our packing machine main using in the food industry, Including noodle, spaghetti, snacks and pasta etc.
Good Service-----------------We responsible for training the technicians of buyer's company to operate machine independent in China or our engineer get to buyer's country for assembling and training. Of cource, In order to help customers to improve production efficiency, save resources and reduce production costs. We can design machine according to the customer's specific.

Our Service

FAQ
1. Q: Can your products be customized?
A: Yes. We are a manufacturer of food making and packing machines with 20 years experience, and more than 80 engineers who can design machines according to your special request.
2. Q: What to do if there is a problem with the machine?
A: All machines will be tested before delivery, if there is a problem, we have after-sales specialists can provide home repair
3. Q: How many countries have you exported to?
A: we have exported to more than 20 countries, such as : Canada, Turkey, Malaysia, Holland, India, etc.
4. Q: What is your delivery time?
A: 30-50days. For special request, we can deliver the machine within 20 days.
5. Q: What about aftersales service?
A: we have 30 aftersales service staff, who have experiene to provide service overseas to assemble the machines and train the customers' workers when machines arrive.
