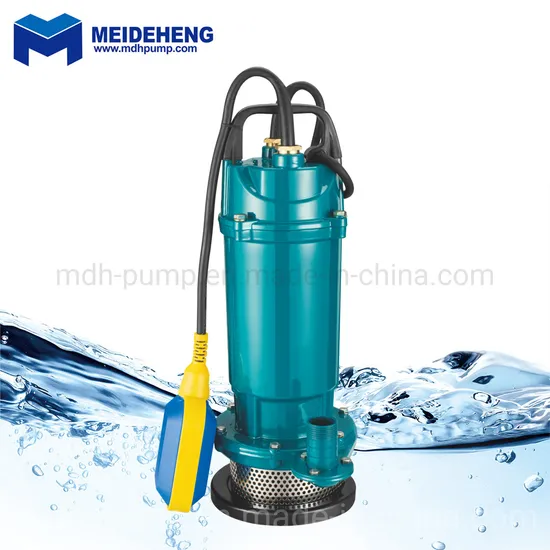

Single Phase 220V AC 370W Qdx Submersible Clean Water Pump

Product Description

Q(D)X Series Submersible pump
ApplicationsFor water supply from wells or reservoirs.
With small size and light weight, the QDX/QX Series pump is especially suitable for the rural wells water pumping, the farmland irrigation and drainage, garden watering, water spraying and households water supply, as well as other applications such as industry, aquaculture, construction sites and many other commercial applications. Features1. New-designed motor structure, longer service life.
2. Portable and durable aluminum alloy structure. Operating conditions Liquid PH: 6.5-8.5
Maximum liquid temperature: +40ºC
Maximum ambient temperature: +40ºC
Maximum immersion depth: 5m
Maximum sand content: 0.1%.
The grain diameter of suspended solids up to 0.2mm Motor and PumpInsulation class: B
Protection class: IP68
Pump body: Cast aluminum
Motor bracket: Cast iron.
Impeller: Aluminum alloy or plastic impeller
Motor shaft: The heat treated steel shaft
Mechanical seal: Ceramic-Graphite, Silicon Carbide-Carbide alloy.
Copper winding
2-pole induction motor.
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Single-phase with capacitor and thermal overload protection. Optional available on requestSpecial mechanical seals, shaft , bottom cover, net
Single phase can add float switch
Other voltages or frequency: 60Hz
Technical Parameter
Structure Chart
The workshops
FAQ
Q1: Are you a factory?
A: Yes. We are a pump factory with more than 20 years professional experience of manufacturing water pumps.
Q2.What is your MOQ of this pump?
A: Our MOQ is a full 20ft container, but we can accept a trial order to check the quality as the first cooperation.
Q3: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q4: What is your payment term?
A: We usually do 30% T/T deposit and 70% against documents, or L/C at sight.

Q5: How long is your warranty?
A: One year!

Q6: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
