Portable Octane and Cetane Meter Sx-300

Product Description

FOCUS ON OIL FILTRATION SYSTEM OVER 20 YEARS Recycling your used oil reduces pollution and protects our environment. Conserving a valuable resource and getting paid for it. Chongqing TOP Oil Purifier Co.,Ltd.

Product Description
Product Show:

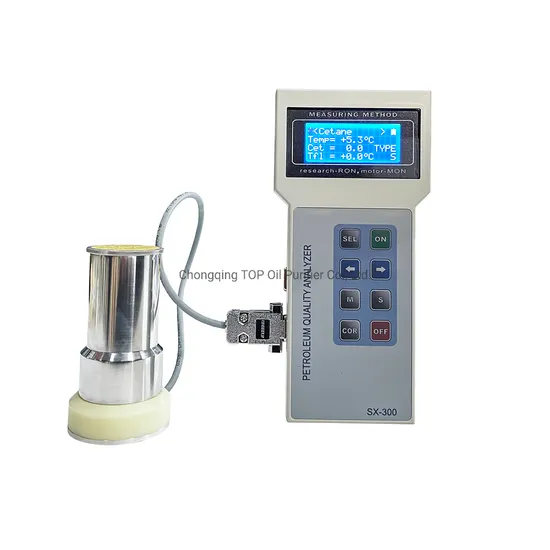

Portable Octane and Cetane Meter SX-300
Introduction:
Whether in the field or in the laboratory,this analyzers are leaders in portable rapid analysis instruments. We designs and produces analytical instruments for gasoline, diesel, motor oil and transformer oil.
Portable octane and cetane analyzers are often used for on-site analysis of octane number of power gasoline, corresponding to the motor method and research method (RON and MON), and also suitable for cetane number analysis of diesel. In addition, the temperature of the analyzed liquid and the freezing point of diesel can also be measured, and the measurement results are displayed on the LCD liquid crystal display.
Octane and cetane analyzer is widely used all over the world. Its measurement method conforms to international standards: octane measurement conforms to: ASTM D 2699-86, ASTM D 2700-86; diesel cetane measurement conforms to: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.
Features:Determining octane numbers for motor petrols;Determining cetane numbers for diesel fuels;Determining solidification temperature and diesel fuel type;Content of antiknock compounds boosting the octane number of petrols;Content of pour-point depressants for diesel fuels;Content of kerosine in summer diesel fuel;Petrol breakdown time (oxidative stability);Loss angle tangent of circuit-breaker, machine and engine oil;Level of engine, machine and circuit-breaker oil clarity;Manufacturer, engine oil brand;Engine oil base number;Dielectric permeability of oil products;Oil products volume resistivity;Determining the mechanical impurities content in oil products;Determining the cut. GOST 14203-69 - Oil and oil products. Dielectric humidity measuring method Measuring principle
The principle of Octane Meter operation is in determining knock characteristic of gasoline, self-flammability of diesel fuel and in determining oil characteristics based on measurements of its dielectric permeability and volume resistivity.
Technical Parameter:

#	Parameter description	Measurement units	Value
1	Measured petrols octane numbers range	ON	40-135
2	Acceptable limit of octane number measurement basic error, max	ON	±0.5
3	Limit of acceptable difference between parallel octane number measurements, max	ON	±0.2
4	The determination range of antiknock additives content in petrols	%	0.5-15
5	Acceptable basic error limit of antiknock additives content determination in petrols	%	0.1
6	Petrol oxidation breakdown time measurement range	Min	50-2400
7	Acceptable basic error limit of petrol oxidation breakdown time	%	5
8	Petrol quality determination mode basing on volume resistivity	Ohm	10 6-10 14
9	Acceptable basic error limit of volume resistivity measurements	%	3
10	Cetane numbers measurement range	CN	20-100
11	Acceptable basic error limit of cetane numbers, max	CN	±1.0
12	Acceptable difference limit between cetane numbers parallel measurements, max	CN	± 0.5
13	Acceptable error limit when determining diesel-fuel pour point	ºC	2
14	Kerosine content determination range in summer diesel fuels	%	0-50
15	Acceptable basic error limit when determining kerosene content in diesel fuels	%	3
16	Mode for pour point depressants content determination for diesel fuel	%	0.2-1
17	Acceptable basic error limit when determining of pour point depressants content	%	0.01
18	Motor oils clarity level measurement range	%	50-100
19	Acceptable error limit of motor oils clarity level measurement	%	0.1
20	Acceptable difference limit between motor oils clarity parallel measurements	%	0.01
21	POL dielectric permeability measurement range	units	1-5
22	Acceptable error limit of dielectric permeability measurement, max	unit	0.001
23	Acceptable difference limit between POL dielectric permeability parallel measurements, max	unit	0.001
24	Oils base number determination range	unit	3-24
25	Acceptable basic error limit when determining oils basic number	BN unit	1
26	Motor oils manufacturer and brand determination	Manufacturer	-
27	Circuit-breaker oils (dielectrics) breakdown voltage measurement range	kV	5-100
28	Acceptable error limit of circuit-breaker oils breakdown voltage measurement, max	kV	1
29	Acceptable difference limit between circuit-breaker oils breakdown time parallel measurements, max	kV	0.2
30	Measurement range of circuit-breaker oils loss angle tangent	%	0.01-40
31	Acceptable error limit of circuit-breaker oils loss angle tangent, max	%	0.01
32	Acceptable difference limit between circuit-breaker oils loss angle tangent parallel measurements, max	units	0.001
33	Determination range for mechanical impurities content in oil products	%	97-100
34	Acceptable basic error limit when determining mechanical impurities content in oil products	%	0.01
35	Water-in-oil content determination range for oil products	%	0-30
36	Acceptable basic error limit when determining water-in-oil content of oil products	%	1
37	Measurement time	sec	1-5
38	Insufficient power supply indication operation threshold	V	5.4
39	Instrument useful life		6
40	Overall dimensions of:
	electronic module	mm	100х210х40
	sensor #1 and #2	mm	60х100
	Instrument mass with one sensor/two sensors	g	850 / 680

Function Comparison Between SX-150 and SX-300:
Payment Terms:

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

After-sale Service:
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service. * We guarantee the maintenance time no more than 3 working days and response time within 1 hour.* We build instrument service profile for our clients to record the product service and maintenance conditions.* After instruments start service, we will pay follow-ups to collect the service conditions.
