Refrigerator Door Gasket Cutting Machine Gasket Rubber Seal Cutting Machine Magnet and Gasket Cutting Machine

Product Description

Product Description

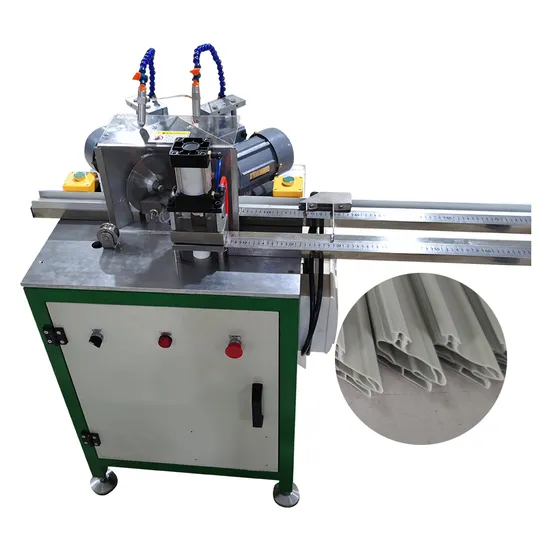

(1) Cutting magnet switch (2) Power light (3) Emergency stop button(4) Miniature circuit breaker (5) Magnet track (6) Gasket track(7) Positioning mold (8) Run button (9) Motor(10) Sprinkler (11) Circular blade (12) Air cylinder

refrigerator door gasket and rubber magnetic strip cutting machine
This semi-automatic refrigerator door gasket and rubber magnetic strip cutting machine can cut the both ends of the gasket and rubber magnetic strip corner together, it has feature of easy operate, convenient moving,. the blade is rotated by the motor and move by the air pressure.

Product Name	refrigerator door gasket and rubber magnetic strip cutting machine
Brand Name	ASPECT/ OEM Service
Size	650mmX600mmX1100mm
Application	Used in refrigerator door gasket and rubber magnetic strip cutting
Function	Cutting refrigerator gasket and rubber magnetic strip for 45 degree angle
Cutting Gasket Profile Area	45mmX(25~30)mm
Punching Magnetic Strip Profile Area	30mmX5mm
Voltage/ Power/Frequency	380V or 220V /0.74kW/50~60HZ
Material Origin	China
Quality Guarantee Period	1 Year
Other Service	OEM &OEM, Customized Specification, One to One Communication

Cutting Effect

Gasket cutting end face smooth without burr	Gasket cutting end face angle accurate

Magnetic stripe punchingMagnetic stripe punching will not cause damage to magnetic strip, punching face not only angle accurate, but smooth and burr.

Detailed Photos

Circular knife Special circular knife assure cutting gasket smooth without burr.Proved through practice, the circular knifes can use 1500 hours no need to replace.

Sprinkler Automatic sprinkler lower the temperature of the circular knifes, delay circular knife life and prevent high temperature from influencing gasket cutting effect.

Motor100% copper coils and stainless steel bearing, high efficiency, low noise, long-life.

Air cylinder Strong air cylinder and special mold can punching magnetic strip easily, punching section smooth.

Magnetic strip place Magnetic strip place is in the machine inside, save space and artistic.

Locate mold The gasket and the magnetic stripe locate together.	Electronic transformer

Our Services
1).Answer your enquiry in 24 working hours.2).One year warranty, if damage within 1 year, we will afford the maintenance costs, if damage beyond the warranty period,we will provide parts as the factory price.3).Provided technical support and after sales services.4).Can offer OEM service.5).Certification:CE.
