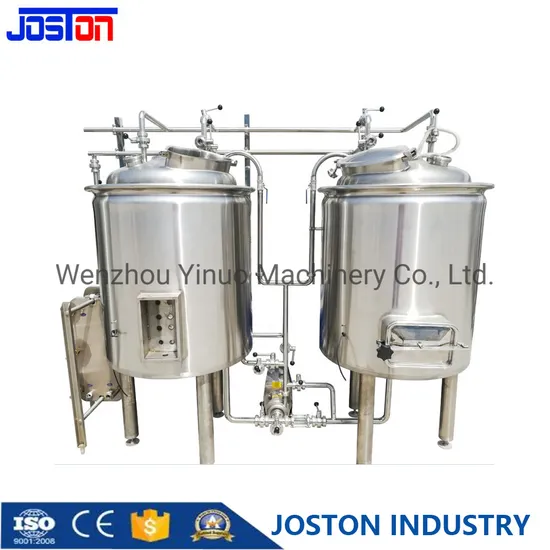

Stainless Steel Fermenter Whirlpool Tank Brewing Equipment

Product Description

whirlpool is widely used in the brewpub ,bar and restaurant to brew beer. The Brewhouse system including the following :Mash tank,Lauter tank,kettle ,whiripool tank,hops adding system and pipeline etc.
It can be in various combination:
1. Two vessels: Mash/lauter tank, Kettle/whirlpool tank
2. Three vessels: Mash/lauter tank,whirlpool, Kettle;Or Mash tun, Lauter tank, Kettle/whirlpool tank;
3. Four vessels: Mash tun, lauter tank, kettle, whirlpool tankhas three kinds of heating method:
1. Electric heating
2. Steam heating
3. Direct fire heating

No.	Name	Components	Specification
1	Grain Milling Unit	Rolling Miller	Double Roller
2	Brewhouse system	Mash/Lauter tun	Side mounted grain outdoor with grain chute
			Laser cutting type water milling sieve
		Boiling/Whirlpool tank	Electrical heating/Steam heating
			Tangential whirlpool inlet
			Sanitary leveling sight glass
		Hot water tank	Sanitary leveling sight glass
		Yeast adding device	Sanitary SUS304 all welded
		Plate heat exchanger	Two-stages cooling(ice water and tap water)
		Pump	Centrifugal pump:3T/h
		Pipe and fittings	Completely SS304, Work Platform is included
3	Fermentation system	Fermenter	Dimple cooling jacket on cone and bottom
			Side manhole/Top manhole
			Tri clamp CIP ball
			Full sanitary sampling valve
			Level tube for special request
4	Filtration unit(optional)	Plate frame filter	Dimensions(mm):700*500*800.
5	Bright beer tank(optional)	Bright beer tank	SUS304
6	Glycol Chilling Unit	Glycol Water Tank	Providing the ice water for cooling down the wort and beer
		Chiller	Refrigerant: Freon R134a or R404a
		Glycol water pump	Ice water circulation
7	Control Unit	PID/PLC	Floor Type/Wall Hanging Stainless Steel or Spray Paint Brewhouse and Fermentation Control
8	CIP	Alkaline liquid tank	Configured with electrical elements
		Sterilization tank	SUS304 with fully welded
		Pump	1T/H

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
