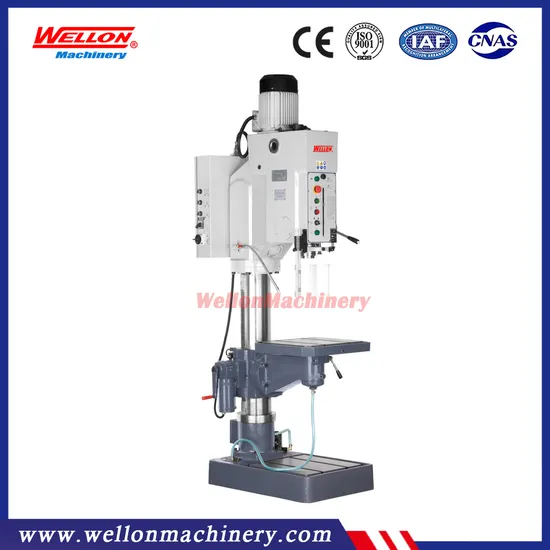

Vertical Drilling Machinery Z5040
| US$1,000.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5040
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Dia (mm)
40mm
Spindle Taper
M.T.4 or R8
Speed
80-1250rpm
Main Motor
1.1kw
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
8459290000
Production Capacity
200PCS/Month
Packaging & Delivery
Package Size
1850.00cm * 750.00cm * 1000.00cm
Package Gross Weight
482.000kg
Product Description
Product DescriptionProduct Parameters
Performence Features:
Drilling, milling and tapping.
Head swivels 360 degree horizontally.
Headstock and Worktable up & down perpendicularly.
Super high column.
Precision micro feed.
Positive spindle lock.
Distinct auto device for releasing tools, operate easily.
Geared drive, lower noise.
Technical parameter:
| Model | Z5040 |
| Max.drilling capacity | 40mm |
| Spindle taper | M.T.4 or R8 |
| Spindle travel | 130mm |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Distance from spindle axis to column | 290mm |
| Distance from spindle nose to table | 725mm |
| Distance from spindle nose to base | 1125mm |
| Headstock travel | 250mm |
| Swivel angle of headstock | 360/ 90 degree |
| Worktable travel | 600mm |
| Worktable size | 380x300mm |
| Base size | 417x416mm |
| Swivel angle of table | 360 degree |
| Table tilt | +/-45 degree |
| Size of stand base | 417x416mm |
| Motor Power | 1.1KW(1.5HP) |
| Net weight/Gross weight | 432kg/482kg |
| Packing size | 1850x750x1000mm |
Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
MachiningCenter ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price
and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
