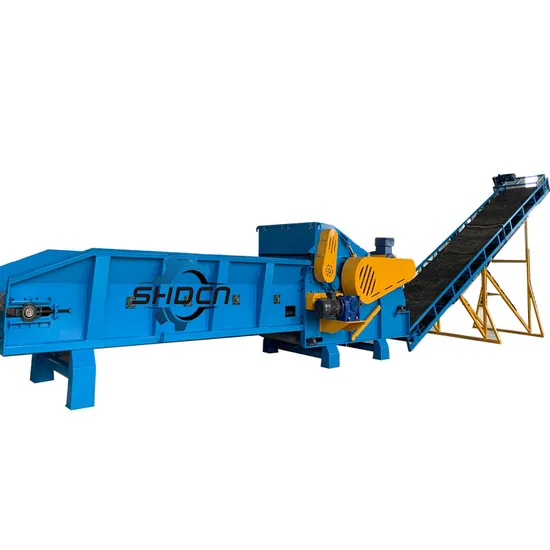

Shd Industrial High Efficiency Wood Chip Machine Wood Chipper with 250kw Motor 1150mm Rotor 6PCS Knifves

Product Description

wood chipper
Description of wood chipper:Wood chipper, also known as wood chip machine, is a special equipment for producing high-quality wood chips. It can cut pine, miscellaneous wood, poplar, Chinese fir and other logs and moso bamboo into uniform pieces. It can also slice various materials such as veneer, veneer, bamboo branch, corn stalk, cotton stalk, reed and other non wood fiber poles. Users can adjust the specifications of wood chips within a certain range according to their needs. The product has regular discharging rules and high output. It is an ideal equipment for the material preparation section of industrial production such as paper mill, wood-based panel and medium fiber board and all kinds of wood chip production bases. All models can be customized according to customer needs.

Wood Chipper Model	Power(KW)	Feed Port(MM)	Rotor Diameter(MM)	Capacity(T/H)	Knife/Hammer Quantity (PCS)
SHD216	55	540*240	650	4-6	3/12
SHD218	110	750*240	650	8-10	3/16
SHD1250-500	132	1250*500	800	10-15	6/24
SHD1400-600	160	1400*600	800	15-20	6/24
SHD1650-600	200	1650*600	800	20-30	6/28
SHD1400-800	250	1400*800	1050	25-35	6/32
SHD1600-800	315	1600*800	1050	40-50	6/32
SHD2000-1000	450	1800*1000	1200	50-70	9/36
SHD2000-1300	530	2000*1000	1300	70-90	9/36

Wood Chipper Model	Power	Feed Port(MM)	Rotor Diameter(MM)	Capacity(T/H)	Knife/Hammer Quantity (PCS)
SHD216D	110KW	540*240	650	10-15	3/12
SHD219D	110/160KW	750*240	850	25-30	3/16
Mobile SHD1250-500 with diesel engine	350HP	1250*500	800	25-30	6/24
Mobile SHD1400-600 with diesel engine	420HP	1400*600	800	35-40	6/24
Mobile SHD1400-800 with diesel engine	480HP	1400*800	1050	40-45	6/32
Advanced configuration wood chipper all adopt online soft start, Delixi electric appliances,industrial grade PLC, well-known domestic brands of motors, thickened and heavy-duty electric control cabinet,hard toothed reducers, C6 or D6 belt pulleys, which can achieve high speed and high output.

Specifications of wood chipper:

Model	SHD216	SHD218	SHD1250-500	SHD1400-600	SHD1600-800	SHD2000-1000
Power(kw)	90	110	132/160	250	315	530
Capacity	4-6	8-10	10-15	15-20	25-35	40-50
Knife/hammer quantity(pcs)	3	3	3*2/24	3*2/24	3*2/28	3*3/32
knife rotary speed(r/min)	547	556	760	726	726	726

Feature of wood chipper:
1. This product optimizes the rotor structure and blade material, so that the output is larger and the rotor maintenance is convenient 2. The bearings are optimized in the form of labyrinth, so that dust is not easy to enter. The bearings are equipped with automatic lubrication device, which does not need manual lubricating oil filling. 3. Optimize the electrical system, adopt automatic control and remote control operation, if the upper rotating part of the machine encounters resistance, it will automatically reverse rotation, so as to protect the main motor from high load operation. 4. The frame of the whole machine is made of square tube manganese steel, which is widened and lengthened to ensure the stable operation of the machine.
5. Screen mesh size is customized for different requirements on size of end product.
Part show:
Customer cases:
Notice:All models can be customized according to customer needs.
