Rubber Mixing Machine Rubber Two-Roll Mills Rubber Mill Two Roll Mixing Mill

Product Description

Product Description This machine is suitable for reclaimed rubber plants, transmission belt factory, conveyor belting factory, rubber products factory, shoe factory,cable factory, rubber hose factory, seals and rubber related industry.It is mainly used for the mixing of natural rubber or reclaimed rubber after desulphurization to mixing ,plastic refining and tablet.
Tailored structure, easy to operate.
Inblock cast frame and base. Very strong and bearing enuogh.
Chilled cast rion, abrasion resistant with long service life.
Hard-tooth surface gear reducer 6 class precision, which has long service life and low noise.
Dual-listed rolling bearings,which reduces energy consumption by 30%.
Manual adjusting
Hydraulic blocking
Thin oil lubrication
Pneumatic rubber knife
Water cooling

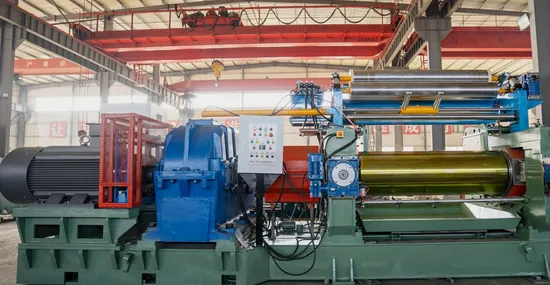

Detailed Photos

Product Parameters

Type	Roll Diameter mm	Roll working length mm	Front Roll Liner speed m/min	Speed Ratio of rolls m/min	Max roll space mm	Compound feeding capacity kg	Motor Power kw	Overall Size mm	Gross Weight kg
XK-160	160	320	9	1:1.35	0.1-4.5	1-2	5.5	1120X920X1350	2000
XK-250	250	620	16.3	1:1.7	0.1-8	10-15	18.5	3300X1300X1200	3200
XK-300	300	750	16.3	1:1.25	0.1-4.5	5-15	30	4020X1500X1500	6500
XK-360	360	900	16.7	1:1.25	0.1-10	15-20	30	4200X1780X1700	6500
XK-400	400	1000	18.65	1:1.27	0.1-10	18-35	45	4400X1850X1760	8000
XK-450	450	1200	21.8	1:1.27	0.1-12	50	55	5200X2000X1830	11400
XK-550	550	1530	28	1:1.2	0.1-16	50-65	110	6300X2300X1900	22000
XK-560	560-510	1530	26.4	1:1.2	0.1-15	50-65	90	6120X2300X2000	22500
XK-610	610	1930	30.5	1:1.1	0.1-15	140	160	6570X2900X2100	44000
XK-660	660	2130	28	1:1.24	0.1-15	165	185	6700X3400X2100	49000
XK-710	710	2200	31.9	1:1.51	0.1-15	190	280	8185X3910X2270	59000

Company Profile Qingdao Huicai Machinery Manufacturing Co., Ltd has over 20 years' history in manufacturing rubber machinery. We are a specialized manufacturer integrating the research and manufacture of various specifications of Rubber Vulcanizer, Rubber Mixer, Rubber Kneader, Rubber Extruder,Rubber Calender and Rubber Cooler . Service Tyre factory,Solid OTR tyre factory,Tyre tread retreading factory,conveyor belt factory,rubber mat
factory,rubber sealing factory and so on.
Factory area 40,000 square meters ,
Registered capital USD 3,000,000.00
National AAA grade credit enterprise.
China Industry Association governing units.
China Pipe Association member units.
China Rubber Products Association member units.
China Industrial Mould Association member units.
