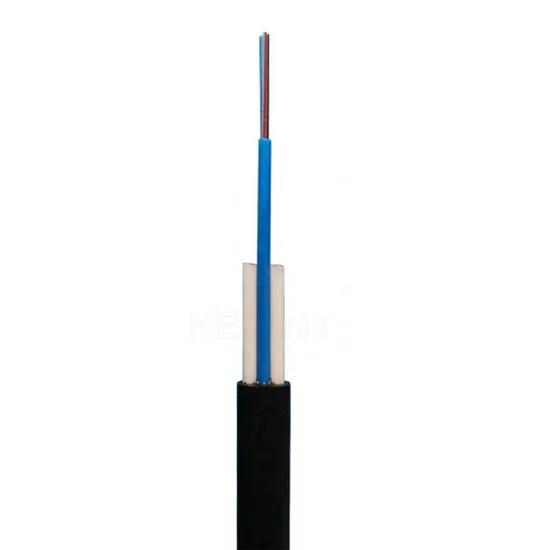

Kexint Outdoor Aerial FRP Gyfxtby 1-24 Core Flat Fiber Optic Cable Wholesale
Basic Info.
Model NO.
GYFXTBY
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC, CE/RoHS/ISO9001
Brand
OEM
Sheath Material
PVC
Jacket
HDPE/PP/PVC/LSZH
Double Strength Member( FRP)
2*1.6mm FRP
Loose Tube Material
PBT
Fiber Model
G.652D or G.657A1
Fiber Core
1c/2c/4c/6c/8c/12c/24c
Outer Diameter
4.5*8.0mm
Package
2km/Roll
Transport Package
Wooden Pallet
Specification
GYFXTBY
Trademark
KEXINT
Origin
Guangdong, China
HS Code
8544700000
Production Capacity
1000 Kilometer/Kilometers Per Week
Packaging & Delivery
Package Size
60.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.000kg
Product Description
Product Description1-24 (G.652D or G.657A1) suitable for aerial installation
Outdoor drop cable having FRP rods as strength members and containing 24 fiber in full compliance with ITU-T G.652D or G.657A1. The offered cables are fully compliant with the relevant IEC specifications. Features
• 1-24 enhanced low water peak single mode fibers in full compliance with ITU-T-G.652D/G.657A1
• two all-dielectric strength members (FRP)
• loose buffer tube filled and centrally placed in the cable
• UV stabilized HDPE outer sheath, black
Application
GYFXTBY optical cable is suitable for air-blown installation, core network, metropolitan area network (MAN).
access network, backbone network, local area network (LAN), FTTx network, data center and 5G communication scenarios.
Due to its light weight, convenient construction and low cost, it is particularly suitable for occasions that require rapid deployment and maintenance.
Technical Parameter
| Cores available | 1,2,4,6,8,12,24 |
| Outer diameter | 4.5*8.0mm |
| Outer jacket thickness | 2.0mm |
| Double strength member( FRP) | 2*1.6mm FRP |
| The casing diameter | 2.2mm |
| Tube NO. | 1 |
| Fiber cores | Tubes | Max. Fibers per tube | Cable OD mm | Weight Kg/km | Max. pulling power Long/short-term N | Max. pressure Long/short-term |
| 1-12 | 1 | 24 | 5.0*8.5 | 40 | 300/1100 | 300/1000 |
| 24 | 1 | 24 | 5.0*8.5 | 45 | 300/1100 | 300/1000 |
