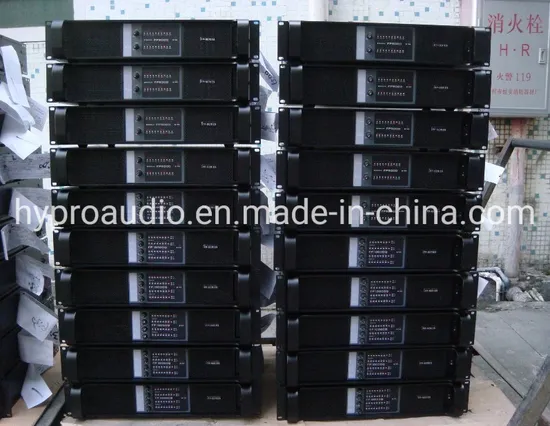

Fp10000q Digital Power Amplifier, Professional Amplifier System

Product Description

FP 10000Q 4channel digital amplifier class D big power good working for line array

Model	FP10000Q
Output Power	20-20kHz, 1W with 1 khz
8Ω Stereo Power(RMS)	1300WX4
4Ω Stereo Power(RMS)	2100WX4
2Ω Stereo Power(RMS)	2500WX4
8Ω Bridged Power(RMS)	4200WX2
4Ω Bridged Power(RMS)	5000WX2
Frequency Response(+o/-0.3dB, 1W/8Ω )	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	< 0.1%
Signal-to-Noise Ratio	> 112 dBA
Channel separation (Crosstalk) at 1 kHz	> 70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL, IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch. )	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W× H× D)	483× 88× 396mm
Packing dimension	560× 180x500mm
Net weight(kg)	15
Gross weight(kg)	18

About Packaging&Shippment:
1, Usual we use carton packaging, flycase for optional
2, Sample order we can delivery with 10days, Normal order we need time 20days around to arrange production.
If you want to know details about our company & products, pls feel free to contact us, send a email or give a call both ok,Nancy's mobile: 0086 15627915923
Why Choose DIASE
1, We have our own workshop to make wooden case& paint,crossover, driver unit, at the same time we have cooperation with import driver supplier:Italy Faital, RCF,B&C, CIARE.18Sound etc.
2, We have stable workers trust and loyal to factory, so the quality good and stable.
3, We have the ability to design and develop new products depend on market demand.
4, We have the special forwarder company good service to us and we are sure for the delivery.
5, More than ten years overseas market experience, we can easy to understand what you need
6, Sample order are respected, your are welcome to try your market with our products !
7, Can be customized any models depend on your sample or do a little change as your request.
8, Good service on pre-sell,on-sell,after-sell,both wholesale and projects are welcomed
Company Information:
DIASE audio factory which specialized in professional speaker have more than 10 years experience on design, develop and manufacturing. We designs and manufactures professional audio systems for use in commercial and professional settings such as auditoriums, hotels, restaurants, clubs, stadiums and sound rental companies.
We offer ODM/OEM service and manufacture different quality level speakers for different customer requirement and offer project solutions !
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
DIASE as a brand the company name is guangzhou haoyang pro audio manufactory, located in baiyun district, Guangzhou, China, 30 minutes to airport, very near jiahe wanggang metro station,transportation is convenience.
RFQ: Q, Are you a factory ?
A, Yes, we are prefessional speaker manufactory with several years of OEM/ODM service in guangzhou.China.you are welcome to visit us when you come to china.
Q, How could I buy the items I need if there is no price on the website ?
A, You can send your inquiry to us about the items you need, our sales will reply you within 24 hours to help you make the order.
Q, Could you offer wholesale price ?
A, Yes, of course, if you order large quantity, we can give you the bulk price
Q, Can you print ourself logo on the items and package ?
A, Sure, we are manufactory, OEM are welcomed
Q, Can I put sample order ?
A, Of course, we are pleasure to accept sample order as quality test.
Q, How could you ensure the professional speaker quality excellent ?
A, Please don't worry, it will be tested one by one before shipment by QC.if there are some problem for the goods after you received it, pls feel free to contact us, we would give you solution ASAP.
