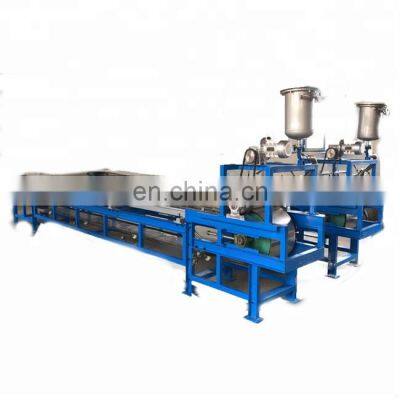

depilatory wax making machine sulfur pellet making machine

Product Description

Product Description
paraffin wax granulation machine / resin granulator machine Features Melting material, through material distributor, drips down to the steel belt which is moving evenly. Under the belt, there are continuous sprayer and cooling device which can cool, solidify and pelletize material on belt as soon as possible. According to material feature and process requirements, outward turning, rotating, reciprocating, gate types are available for your choice. Based on material feature and use requirements, material distributing forms like incontinuous dripping, continuous strip, full-width overflowing are available, and with hemispheric, bar, flake products.Data information Model JXSP-60JXSP-120Machinewidth600mm1200MMMachinelength12000mm15000mmSize of mold 1.8-2.2 mm1.8-2.2mmSize of products 4-8mm(adjust)4-8mm(adjust)Product’s shapehemisphericalhemisphericalCapacity100-150kg/hour for paraffin400kg/h for paraffin 200-300kg/hour for resin600-800kg/h for resin 200-300kg for RD600-800kg/h for RDMotor5kw+1.5kw5.5+1.5kw Voltage 380V,50HZ,3 phaze380V,50HZ,3 phazeWater pumppressuer: 0.3mpa water flow: 15-20 m3/h (equipped by user)pressuer: 0.4mpa water flow: 30 m3/h (equipped by user) Pictures Finally products Transporting (usually by sea and railway, if you have any special requirements about tranporting, feel free to contact us) About our factory
