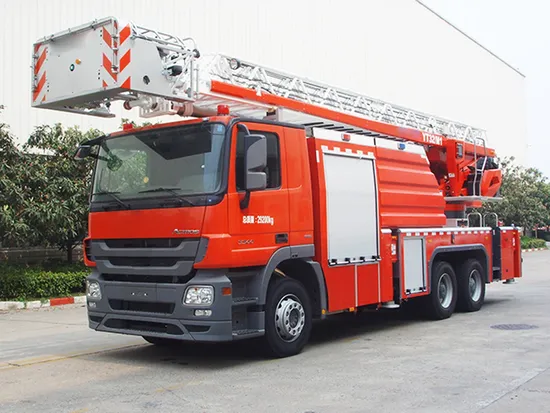

Top Brand New Machine 32m Fire Truck Yt32m2 with Good Price

Product Description

Products Description Perfect fire-lighting system, outstanding pump performance. Pump system is the US Darley type with a vacuum pump, full power takeoff drive, adequate power reserve. Platform waler cannons te the US Arkon eiedrtc-«xitrolled fire monitor, inlet and outtet and conlrol valve aw fully furnished and easy to operate. The vehicle is equipped with 4900kg fire tank - 3000kg water. 1900kg foam, with aluminum alloy telescopic pipes, lighter load weight.
The vehicle adopts leading technology, which to based on PLC and CAN bus distributed control technology, enabling Automatic off, rtal-ticne leveling on, platform load weighing, platform ultrasonic anti-colltsion detection, gesture dynamic monitoring and single-k«y operation to cutoff the car.
Advanced winching telescopic lechnofooy, the first double direction of turning, double helical winch mechanisms. It can up two sets of telMcoplc system at the same time with higher safety; And innovative design of two limit location systems for hydraulic and electrical systems can effectively guarantee the safety and rellabiily of vehtoe opecaiion. Specification

Item	Unit	Parameter
Overall length	mm	11450
Overall height	mm	3810
Overall width	mm	2500
Total weight	kg	29000
Extinguishant rated load weight
Water	-kg	-
Foam	kg	-
Dry powder	kg	-
Max. travel speed	km/h	≥100
Max. net power	kW	324
Rated working height	m	32
Max. working radius	m	22
Time for deploying boom	s	≤55
Time for deploying outriggers	s	≤25
Monitor
Water monitor rated flow	L/s	≥48
Water monitor rated reach	m	≥55
Water pump
Fire rated flow	L/s	≥60
Fire rated pressure	MPa	≥1.2

Details Images Company Profile
