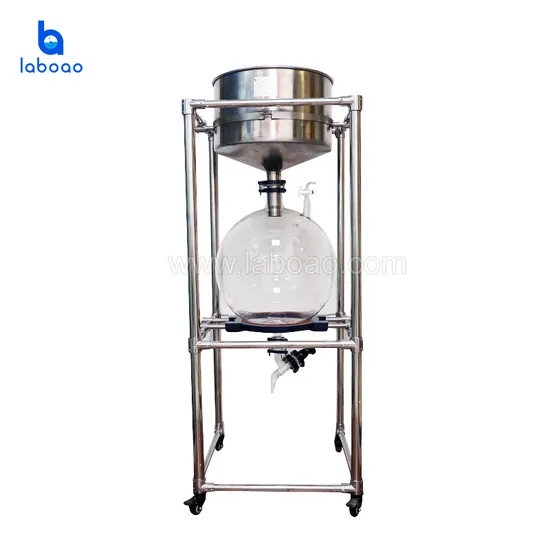

Laboratory Vacuum Filter Stainless Steel Buchner Funnel Suction Filtration for Cbd Oil

Product Description

Laboratory Vacuum Filter Stainless Steel Buchner Funnel Suction Filtration for CBD Oil
A vacuum suction filter is a laboratory-specific filter. It is equipped with microporous membranes with different pore sizes and then vacuum suction filtration. Derived products that are developed based on the existing single-layer glass reactors are mainly used for liquid-liquid extraction and can also be used for room-temperature reactions. After practical use, the performance is superior and has been widely used.
Feature:
1. The suction filter bottle is made of high-borosilicate 3.3 first-grade materials and has excellent chemical and physical properties.
2. Vacuum filter adopts thicker 304 stainless steel funnel.
3. The frame is made of stainless steel material.
4. Special PTFE material seal, perfect technology, high corrosion resistance, and high-cost performance.
5. The discharge part is equipped with a special design PTFE valve for the glass flange port. There is no dead corner in the container and it can be disassembled to facilitate the discharge of solid materials.
6. The whole machine has perfect sealing performance, and the negative pressure can reach below 0.095MPa under a static state.
7. The structure of the whole machine is scientific and visible.

Model	LVF-10	LVF-20	LVF-30	LVF-50
Glass material	GG-17
Frame material	Stainless steel
Pipe material	304stainless steel
Collection bottle volume	10L	20L	30L	50L
Funnel size (mm*mm)	350*220	350*220	450*250	450*250
Funnel material	Stainless steel
Distance between dumping opening and ground (mm)	450
Filter opening	φ80flange opening
Air exhaust device	24#standard bucket valve
Exterior size(mm*mm*mm)	490*490*1500	490*490*1600	490*490*1650	490*490*1750
Packing size(mm*mm*mm)	1600*540*540	1650*540*540	1700*540*540	1800*540*540
Weight (kg)	50	55	60	65
