Power Station 1kw 3kw 5kw Solar Portable Generator Panels Energy System Lithium Battery Bank

Product Description

Power station 1KW 3KW 5KW solar portable generator panels energy system lithium battery bank
ALS Solar AC DC Power System
600W 1200W 2200W
AL Solar AC DC Power System is composed of inverter, solar charge controller and built-in battery, all in one. It can output the DC power and AC power. It is portable, easy operation and space saving. The three modes are the mains supply preferred mode, energy-saving mode, and battery preferred mode. Wide input range and AVR function keep the output voltage stable, even the input voltage changes unstably.

PWM charge mode and the independent solar three-stage charge management protect the battery and extend the using life. And there are overall automatic protection and alarms induding AC output overload protection . short arcuit protection . etc .

Digital LCD and LEDs for visualization of operation status of the equipment. Safe and reliable with intelligent exhaust fan control.

Product display with different angles

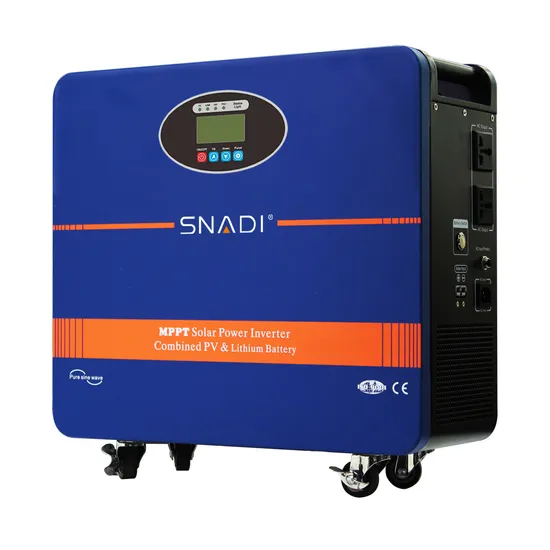

Equipment appearance view

1.Inverter LCD display / operation interface	8. Fan
2.Solar input state indicator	9.AC Output (Max. 10A)
3.Battery mode indicator	10. AC Charging Switch
4.5VDC-USB,12VDC output indicator	11.AC Input
5. 5VDC-USB,12VDCoutput ON/OFF switch	12.Battery Switch
6.12VDC Output:12VDCoutput terminal	13.Battery Extension
7.5VDC Output:5VDC-USB output terminal	14.Solar module input terminals
	15.Heat dissipation window

This system uses MPPT charging mode and the inner temperature sensor, whose charging efficiency is 3%-6% higher than PWM and increasing the utilization of time.
Ensuring the battery work in the best state, and greatly extend the using life of battery.
Easy Operation

1. First step: Connecting the solar panel into Solar panel interface correctly.
Connecting the external battery into the Battery Extension
(optional operation)
Connecting the AC Input
2.Second step: Connecting the load(light) into output ports correctly.
3.Third step: Turn on the"Battery Switch", "AC charging switch" and
"DC output switch.
The Solar input state indicator lights green.
The Battery mode indicator lights green.
The DC output indicator light yellow.
Tip: If this equipment is not used for a long without connecting solar panels, must turn off the "Battery(power) switch"

Make your life more wonderful!
