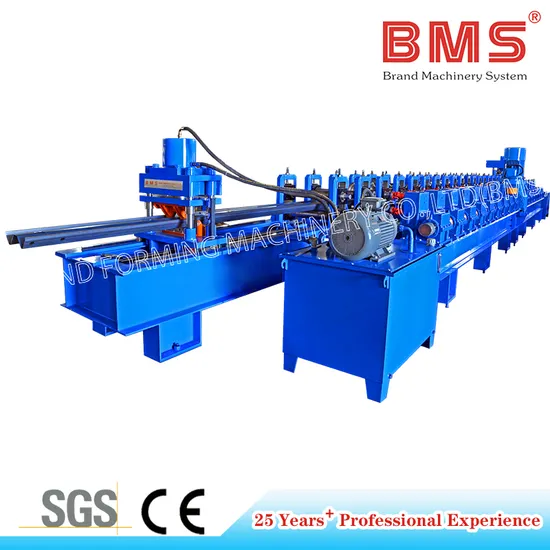

Highway Beam Guardrail Roll Forming Machine

Product Description

Highway Beam Guardrail Roll Forming Machine
Product Description
Material
Thickness:2.5-4.0mm
Applicable Material:GI,Hot Rolled Steel
With Yield Strength:SS400
Inspection Thickness:4.0mm Hydraulic Pre-Punching Hole Device

Hydraulic motor:37KW, Hydraulic pressure range:0-16Mpa
Punching and Cutting tool material:mold steel Cr12MoV, Heat treatment to HRC58-62 degree
2-cylinders hole punching system ,total need seven punching molds
Main Machine
With Feeding Guide,Body Frame made from H450 type steel by welding
Rollers manufactured from Cr12 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф105,precision machined
Gear Box drive
Column type structure design(Cast iron memorial arch,thickness:55mm)
Gear Box driving,about 19-step to form
Main Motor=45KW,Frequency speed control
Speed redcucer motor:K series
All the screw bolts with grade 8.8 to ensure fix the machine structure tightly and long life during the machine long time running
Real forming speed 12-16m/min
With Water Cold Device(For Better Product)

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
