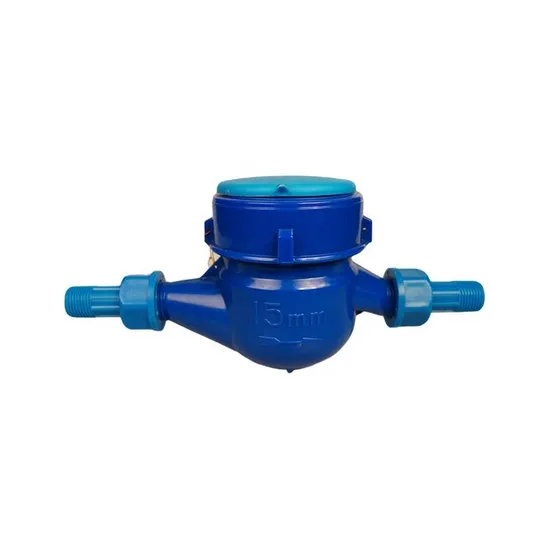

Low Price DN50 2 Inch ABS Plastic Body Multi-Jet Cold Water Meter Factory

Product Description

Low Price DN50 2 Inch ABS Plastic Body Multi-jet Cold Water Meter Factory
Product Description Specification 1. Type name: Multi-jet ,wet-dial ,rotary vane wheel type
2. Model No.: LXS-15EP
3. Standard :ISO 4064 Class B
4. Material: ABS
5. Liquid sealed register
6. Horizontal installation Working Conditions Accuracy From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt) Exclusive +-5% From transitional flow-rate (Qt) Inclusive,to overload flow rate (Qs) Exclusive +- 2% Water temperature<50ºC (Hot water meter<90°C) Water pressure <1MPa(PN: 1.6Pa/16bar) <0.1 MPa
<0.063MPa(R80/R100) Tecnical Details

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
		m³/h		L/h			m³
15	B	3	1.5	120	30	8	0.0001	99999
20	B	5	2.5	200	50	10	0.0001	99999
25	B	7	3.5	280	70	12	0.0001	99999
32	B	12	6.0	480	120	14	0.0001	99999
40	B	20	10	800	200	40	0.0001	99999
50	B	30	15	3000	450	45	0.0001	99999

Detailed Photos Installation Installation requirements: Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation
Production Process
Customer Photos
Packaging & Shipping
Company Profile
FAQ Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
