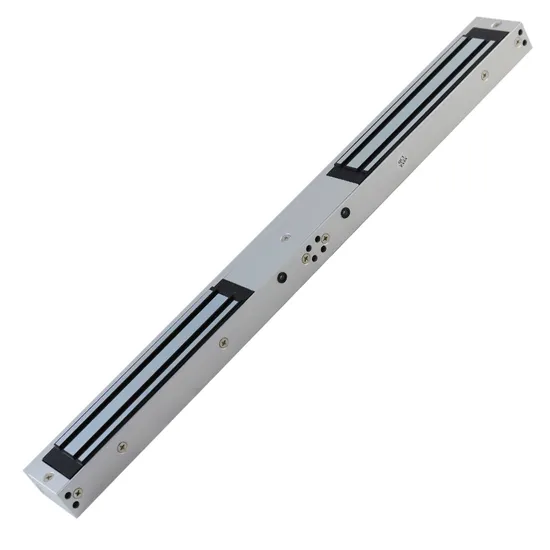

255mds 617lbs*2 Double Door Electro Magnetic Door Lock Wooden/Glass/Metal/Fire Door
| US$20.79-23.99 | 6 Pieces (MOQ) |
Basic Info.
Model NO.
YGS-255MDS
Customized
Customized
Certification
RoHS, CE, Reach/Weee
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Handle
Function
Fail -Safe, Fail-Secure
Type
Electromagnetic Lock
Magnetic Core Material
Silicon Steel
Surface Treatment
Silver Oxide Coating
Signal
No Signal
Outer Box
532*220*137
Transport Package
Carton Box
Specification
515*68*60
Trademark
customize
Origin
China
HS Code
8601101100
Production Capacity
500000pieces/Year
Product Description
| Holding Force | 617lbs (230kg±15%)*2 |
| Operating Voltage | 12V/24V DC |
| Working current | 680mA |
| Operating temperature | *-25 ºC~60 ºC |
| Working humidity | 10%~90%RH |
| Way of unlock | Power on to lock(Fail safe) |
| Installation method | Hanging installation (Surface installation) |
| Door opening angle | 90° |
| Panel material | High strength aluminum alloy |
| Finish | Oxidation & brushed finishing |
| Signal feedback | no |
| Indicator light | Red LED |
| Magnetic size | 500*28*48 mm |
| Armature plate size | 158*40*13mm |
| Scope of application | Wooden door, Fireproof door, Glass door, Metal door |
| Service life | More than 500000 times |
| Weight | 3.8kg/PCS |
| Packing quantity (PCS/CTN) | 6 |
| Certifications | CE/REACH/ROHS/WEEE |
