Single Hole EDM Brass Tubes Brass Electrode Tubes for Drilling Machine

Product Description

Product Description

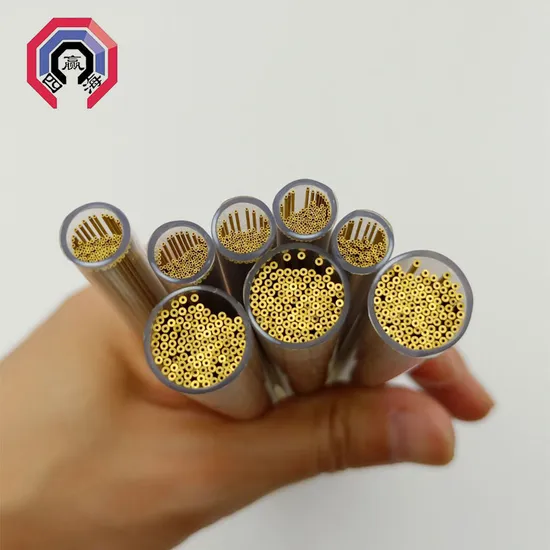

Single Hole EDM Brass Tubes Brass Electrode Tubes for Drilling Machine



1.Size: 0.3 -3.0mm
2. Length : 300mm-600mm
2. Material: brass
3.Packing: 20/30/35/40//50/100 pcs in a plactic tube
4.Fitting for all edm drilling machines

Immediately delivery after payment for large quantity in store available.


Feature

1. Provide single channel & multi channel types brass and copper tubes to cope with different use.
2. High accuracy, the smoothness of the hole surface can be maintained.
3. The tube body is absolutely straight, ensuring that the process is keeping high accuracy when it is under discharging.

The package for kind of size brass/copper tubes

Brass / Copper tube edm electrode tube list
OD (mm)	Length(mm)	Packing (pcs)
0.1	150mm / 200mm	50
0.13	150mm / 200mm	50
0.15	150mm / 200mm	50
0.2	150mm / 200mm	50
0.3	400mm	100
0.4	400mm	100
0.5	400mm / 500mm / 700mm	100
0.6	400mm / 500mm / 700mm	100
0.7	400mm / 500mm / 700mm	100
0.8	400mm / 500mm / 700mm	100
0.9	400mm	100
1.0	400mm	100
1.1	400mm	100
1.2	400mm	100
1.3	400mm	100
1.4	400mm	100
1.5	400mm	100
1.6	400mm	50
1.7	400mm	50
1.8	400mm	50
1.9	400mm	50
2.0	400mm	50
2.1	400mm	50
2.2	400mm	40
2.3	400mm	40
2.4	400mm	35
2.5	400mm	30
2.6	400mm	30
2.7	400mm	25
2.8	400mm	25
2.9	400mm	20
3.0	400mm	20

Company Profile
Dongguan Ying sihai Precision Mould Co., Ltd was founded in 2010 and is located in Chang'an Town Dongguan City, Guangdong Province which is the biggest and famous Mould Town . The location is excellent and the transportation is convenient..The company is mainly engaged in the production and sales of E D M spare parts , Non-standard custom hardware and E D M Filters products .Meanwhile , we also provide E D M wires ,E D M Ion exchange resin, E D M Molybdenum wire so on . These products are used in all slow, medium and fast wire cutting E D M machines , and supply "one-stop" service.
Our company knows that the development of the company depends on the innovation and quality of the products. , so our products have strict quality control from the procurement of raw materials to the sale of finished products and management of the environment. Therefore, we have obtained I S O 9 0 0 1 and I S O 1 4 0 0 1 certificates.
Our company's products have been sold in more than 69 countries at home and abroad. Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products, competitive prices and perfect after-sales service. And we also can accept O E M and O D M order .
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
