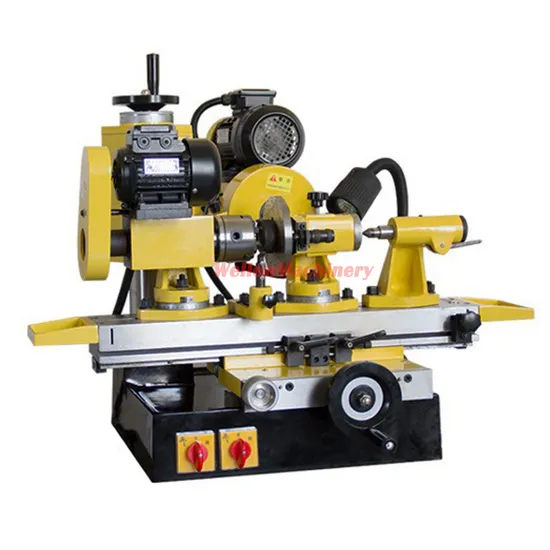

Universal Tool Grinder MR-6025

Product Description

Product Description
Product Parameters

Performence Features:
Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square
shape and diamond cutting tool, gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and
forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise
rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the
safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper
cutters,etc.
Choosing 50E accessory can grind MO-type 4# coning spiral milling cutter, ball cutter, R-shape lathe tool,etc.
Choosing 50K accessory can grind MO-type 4# coning or diameter 3-32mm drill bit, screw tap, etc.
Choosing 50D accessory can grind MO-type 4# coning spiral milling cutter, etc.
Choosing 50J thimble, 50B toolbox and so on
Technical parameter:

Model	MR-6025
About worktable Diameter	350mm
About worktable travelin schedule	150mm
Worktable area	130×675mm
Grinding wheel size	150×16×32mm
Power/Speed	5000 RPM
Motor	220V/380V
Dimension	730×710×715mm
Weight	209kg/222kg
