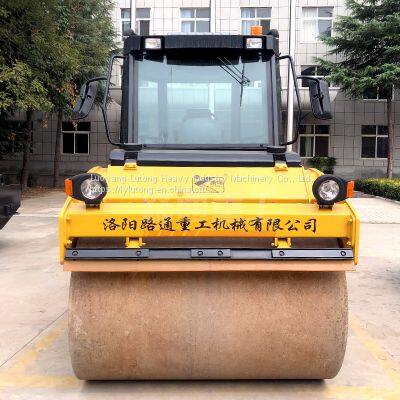

LTC208 8000kg Tandem Drum Roller

Product Details

Product Description

Product Description
PRODUCT FEATURE
LTC208 Vibratory roller is a type of asphalt compaction machinery product which is independently researched and developed by Luoyang Lutong Heavy Industry Machinery Co., Ltd. based on decades of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.
PARAMETERS
Item
Unit
Parameter

Operating mass	kg	8000
Front axle load	kg	4000
Rear axle load	kg	4000
Static linear load	N/cm	231
Form of frame		Fork-type
Water tank capacity	L	2×450
Fuel tank capacity	L	134
Hydraulic tank capacity	L	75
Vibration amplitude	mm
High ampl.		0.67
Low ampl.		0.34
Vibration frequency	Hz
High ampl.		40
Low ampl.		46
Centrifugal force	KN
High ampl.		160×2
Low ampl.		90×2
Travel speed	km/h	0-10
Turning radius	mm	6000
Grade ability	%	30
Steering angle	°	±30
Drum diameter	mm	1150
Drum width	mm	1730
Transverse swing angle of the vibrating wheel	°	±8
Type of water spray	mm	Pressure
Wheelbase	mm	3217
Overall length	mm	4558
Overall width	mm	1840
Overall height	mm	2674
Ground clearance	mm	258
Diesel model		QSB3.9
Diesel power	kw	74
Diesel speed	r/min	2400

This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
