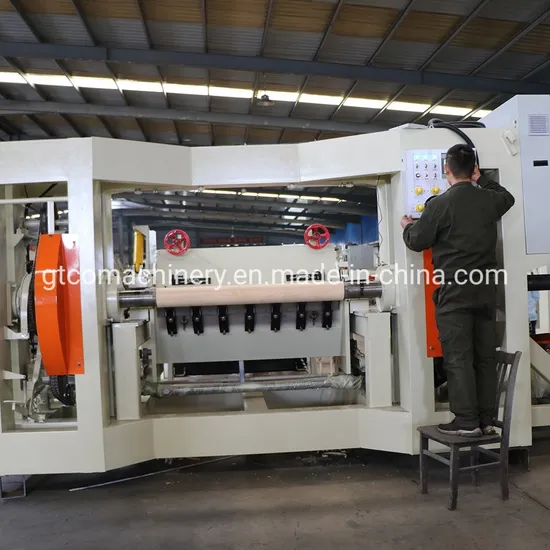

Plywood Manufacturing Spindle Peeling Machine

Product Description

GTCO 8feet 4feet spindle veneer peeling machine peeler for plywood manufacturin
Product Parameters

Type	1500A	1500B	1700B
Cutting Size (DxL)	Φ1500×2600mm	Φ1500×2600mm	Φ1700×2600mm
Min Residual Diameter	Φ110mm	Φ110mm	Φ110mm
Max. Diameter	1500mm	1500mm	1700mm
Cutting Thickness	0.2-2.0 mm	0.2-2.4 mm	0.2-2.4 mm
Cutting Speed	48-75meters/min	48-75m/min	48-75m/min
Power	36kw	42kw	47kw
Peeling Blade Size	2700x180x16mm	2700x180x16mm	2700x180x16mm
Dimensions(LxWxH)	4500x2300x2300mm	5400x2150x3100mm	5400x2300x3500mm
Total Weight	5600kg	8200kg	8700kg

Product Description
1) New structure---more rational, more sturdy and durable, equal force.
2) New original material---wear resistant,not easy to be out of shape.
3) Famous brand motor----- more powerful, work well for hard wood.
4) Heavy Duty----machine weight is about 7500, heavy enough for any kind of wood and big diameter log.
5) Control system----Adopt New programing, working stable and increase product capacity. Detailed Photos

Packaging & Shipping
Company Profile
WHO WE ARE
GTCO Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc .
WHAT WE DO
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us.
WHY CHOOSE US
1.Customized equipment, especially of unusual size, press, etc.
2.High quality and technical support
3.So rich international-trade experience for machinery.
4. 7*24hour on line service.
