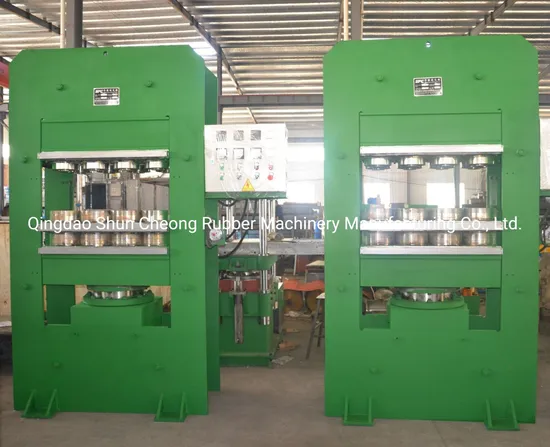

Hydraulic Rubber Vulcanizing Press, Plate Vulcanizing Machine with ISO&CE

Hydraulic Rubber Vulcanizing Press, Plate Vulcanizing Machine with ISO&CE

US$3,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XLB-D1200X1200X1
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Model
Xlb-D1200X1200X1
Total Pressure
4.00mn
Daylight
150mm
Working Layer No.
1
Piston Stroke
150mm
Piston Diameter
200mm
Heating Mode
Electric Heating
Transport Package
Safety Wood or Plywood Crates Packing
Specification
CE/SGS/ISO9001: 2008
Trademark
SFC
Origin
China
HS Code
84778000
Production Capacity
1000sets/Year

Product Description

Hydraulic Rubber Vulcanizing Press, Plate Vulcanizing Machine with ISO&CE XLB-D1200x1200x1/4.00MN
Technical Parameters:
Please tell us your required total pressure, platen size, working layer, daylight distance and piston stroke, so we can design the presses according to your requirements.
Model Total Pressure
(MN)
Daylight
(mm)
Working
Layer
Piston Stroke
(mm)
Main Motor
Power (KW)
Dimension
(L×W×H)(mm)
XLB-240×240×2 0.15 125 2 250 2.2 1200×350×1300
XLB-350×350×2 0.25 125 2 250 2.2 1400×480×1380
XLB-400×400×2 0.25 125 2 250 2.2 1600×500×1480
XLB-500×500×2 0.63 125 2 250 2.2 1750×600×1540
XLB-600×600×2 1.00 125 2 250 2.2 1880×720×1680
XLB-700×700×2 1.20 125 2 250 2.2 2000×850×1750
XLB750×850×2 1.60 200 2 400 3 2250×1200×2200
XLB-900×900×2 2.00 200 2 400 5.5 1400×900×2400
XLB-1200×1200×2 3.15 200 2 400 5.5 1685×1320×2450
XLB-1300×2000×1 5.60 400 1 400 7.5 2000×1860×2500

Machine Features:
1. Durable frame structure with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration.
8. PLC control system.
9. High efficient and superior vulcanizing performance.
10. Low power consumption & labor saving.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
We can design and manufacture all kinds of non-standard plate vulcanizing press according to the customers' definite requirements.
Welcome to visit our factory!
