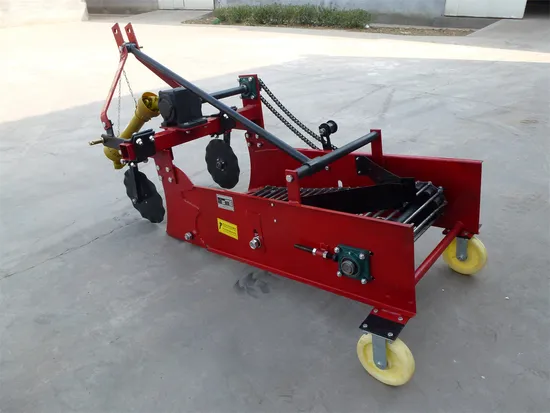

1-2 Row Potato Harvester Sweet Potato Digger Machine
| US$300.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4U
Application
Potato
Power Source
Tractor
Harvest method
Uprooted
Drive Type
Vee belt
Transmission
Soft Shaft
Portable Harvester Type
Side Hanging Type
Color
Custom Made
Condition
New
Application Field
Agriculture
Warranty
Spare Parts Avaiable
Transport Package
Metal Frame
Trademark
LEYUAN
Origin
Shandong China
HS Code
84321000
Production Capacity
5000set /Year
Product Description
Product DescriptionIt is mounted with the tractor of 12-60hp with back power and side power output shaft. Our tractor potato harvester is intended for potato excavation , tubers partial separation from the soil and tubers laying on field surface for their further picking up. A triangular beater is set on the potato harvester. The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
Product Parameters
| Model | Unit | 4U-1 | 4U-2 |
| Harvesting rows | 1 | 2 | |
| Working width | mm | 600 | 900/1300/1500 |
| Working depth | mm | 100-250 | |
| PTO PTO Rotation speed | r/min | 540-720 | |
| PTO PTO shaft spline | 6 spline | ||
| Total weight | kg | 160 | 260/335/390 |
| Matched power | hp | 20-30 | 40/50/70 |
| Linkage | I Three-point suspension I type | IIThree-point suspension II type | |
