Basic Info.
Model NO.
NX-10 & NX-18BA
Operation Mode
Button Control
Speaker System
2.0 Channel
Application
Commercial, Home
Frequency Response
62Hz-20kHz
Directivity Angle
H90°×V40°
Power Peak Handing
600W/5min
Horn Material
Ferrite and Neodymium
Connection
2*Nl 4 Speakon
Transport Package
Flight Case
Specification
300*565*370
Production Capacity
200sets/Year
Product Description
Product Description
Product Introduction

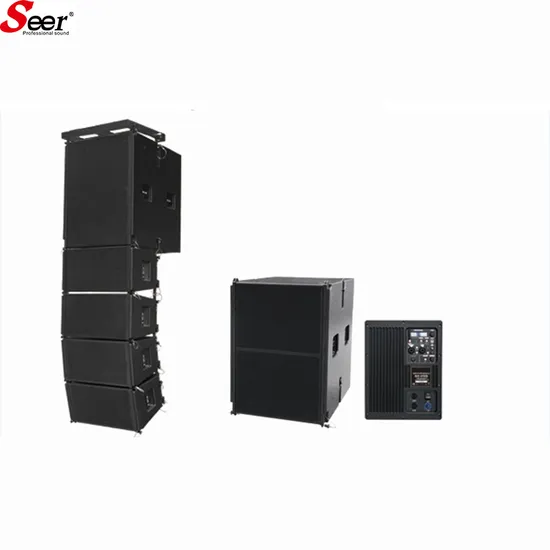

Powered all-in-one PA system for audiences of 500-1000, 4×NX-10 mid/ high units, 2×NX-18D subwoofer, accessories included. This is a sweet plug-and-play solution for smaller to mid sized venues with audiences of 500 - 1000. Consisting of two mid/high units, one subwoofer, and all the requisite accessories. Surprisingly compact and easily transportable, it nonetheless delivers impressive performance. Configuration and voicing is an exercise in convenience - a simple flip of the Gain/EQ switch on the mid/high units and the Configuration switch on the subwoofer is all it takes. The system's integrated controller presets do the rest.
Features
Sets up quickly and is ready for use in no time at all
Fully active component management (gain adjustment) for utmost flexibility and utility
All components needed for safe operation on board and optimized to suit user needs
Mid/high units may be used separately
Applications
Smaller to midsized venues, sporting sport place, all kind of performance movements
Specification
Model | NX-10 |
Frequency Response | 62Hz-20KHz |
Directivity Angle | H90°×V40° |
Impedance | 8 ohms |
Long-term Power(RMS) | 300W |
Power peak handing | 600W/5Min |
Sensitivity | 103dB(2.83V/m) |
Maximum SPL | 130dB |
Connection | 2×NL 4 speakon |
Enclosure Construction | 15-Birch Plywood |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
Dimensions(H×W×D) | 300×565×370mm |
Low | 10 IN×1(260mm) |
High | 2IN×1(44mm) |
N.W. | 19.6Kg |
Model | NX-18BA |
Frequency Response | 40Hz-250Hz |
Impedance | 8 ohms |
Long-term Power(RMS) | 600W |
Power peak handing | 1200/5min |
Sensitivity | 99dB(2.83V/m) |
Maximum SPL | 126dB |
Connection | 2×NL 4 speakon |
Enclosure Construction | 15-Birch Plywood |
Cabinet Surface Treatment | Black Catalyzed Polyurethane Paint |
Dimensions(H×W×D) | 740×565×705mm |
Low | 18IN×1(460mm) |
N.W. | 54Kg |
Power | AC220V 50Hz-60Hz |
Company Profile
Company Information
Guangzhou Seer Audio CO.,LTD is a professional sound system manufacturing company. Our factory specialize in manufacture speaker cabinet, loudspeaker, Tweeter component, amplifier, processor and stage equipment. Our sound system company was established in 1997, and the manufacturing company was established in 2004.We focus on the quality and stability of our products and aim to provide high quality products to our customers. Seer Audio use the most advanced engineering to make sure every product meets the requirements of the most professional and demanding applications. We are always working on expanding the scope of business all over the world. Our products won great deal of honour, such as ISO 9001:2000 quality system authentication, all of our goods pass ROSH test and got CE certificate. We have full confidence in our factory and our future.
Exhibitions
Project
Certifications
FAQ
FAQ
Q1.Can we have our logo or company information on your profucts or packages?
A1.Sure. We accept OEM/ODM orders. Just let us know your requirements.
Q2.Are you a pro-audio manufacturer or trade company?
A2.We are a 100% manufaturer located in Guangzhou.We specialize in R&D, manufaturing, sales.
Q3.How long can we expect delivery?
A3.The high season takes a month and the low season takes 15 days.
Q4.What is the What is the minimum order quantity? How to pay?
A4.The minimum order quantity is one, we only accept T/T.
Q5.How old is the company?
A5.Our company was established in 1997 and has a history of 27 years.
