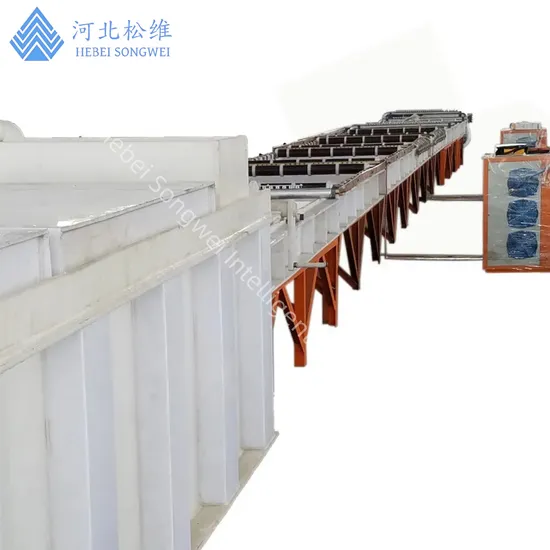

High Production Zinc Galvanizing Electro Galvanized Wire Production Line Equipment

High Production Zinc Galvanizing Electro Galvanized Wire Production Line Equipment

US$19,800.00
1-4 Sets
US$19,500.00
5-9 Sets
US$19,300.00
10+ Sets

Basic Info.

Automatic Grade
Automatic
Warranty
2 Years
Certification
CE, ISO
Key Selling Points
Competitive Price+Easy to Operate+Long Service Tim
Applicable Industries
Building Material Shops, Manufacturing Plant, Ener
Showroom Location
Turkey, Viet Nam, Peru, Saudi Arabia, Indonesia, P
Weight (Kg)
4500kg
Brand Name
Customized Size
Power
Customized Size
Dimension(L*W*H)
Customized Size
Wire Diameter
0.6mm-4.5mm
Zinc Coating Thickness
10-30 G/M²
Number of Wires
4-40 Wires or on Customer Needs
Annealing Method
on Line Annealing
Wire Take-up System
Trunk Coiler or Inverted Coils Type
Zinc Layer Control
Wipe System
Dry Wire System
Waste Heat Recovery
Pickling System
Smokeless Environmental Protection
Transport Package
Plastic Film&Wooden Box
Specification
20*2*1.5 m
Trademark
Songwei
Origin
Hebei, China
HS Code
8463300000
Production Capacity
10 Sets Per Month

Packaging & Delivery

Package Size
2000.00cm * 200.00cm * 150.00cm
Package Gross Weight
5000.000kg

Product Description

Electro Galvanized Wire Making Machine Steel Iron Galvanizing
Machinery for Metal Coating
Product Description
Electro galvanized wire production line which is used for zinc plating on black iron wireand black annealing wire.
Usually for annealing iron wire.
The equipment and galvanized formula is adopt most advanced technology, with sealed acid pickling,very small acid smell.
The finished electro galvanized wire surface is shinning and no dezincification.
Electro galvanized wire is widely used in various fields, such as construction, handicraft, wire mesh, wall mesh, highway fence, product packaging and daily civilian.
Production process : 1.Acid pickling washing → 2.Water cleaning tank → 3.Electro galvanized tank → 4.Drain chemical liquid tank → 5.Cold water tank → 6.Hot water tank → 7.Air-blowing → 8.Electric drying → 9.Take up
Mechanical Specifications
Electro Galvanized Wire Production Line specifications
Wire diameter 0.6mm-1.6mm and 1.6mm-4.5mm
Zinc coating thickness 10--30 g/m²
Number of wires 8 wires,10wires,20 wires or as yours
Raw Material carbon steel wire,iron wire
Tank Material high anticorrosive PP material
Working Hours 24 hours,automatic control
Output 545kgs per hour for 2.0mm wire

Detailed Photos
wire paying off stand and frame

quantity of wire paying off stand is
same as quantity of taking up
acid pickling tank
1 set of acid pump, motor power 1.1kw ,
1 set of water pump, motor power 1.1kw
electro galvanized tank

each tank 4m, with 4 tanks total 16m,
with high frequency inverter
water cleaning tank
1 water cleaning tank with air blowing,
and 1 hot water cleaning tank


electric drying device

Far infrared heating power 2KW,
with air-blowing
common type wire taking up machine

With 1 set of take up frame and take up capstan
frequency speed control
with 1 set of gear rack and 1 set of electrical cabinet
Packaging & Shipping
Related Products
Water tank wire drawing machine Straight line wire drawing machine
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
