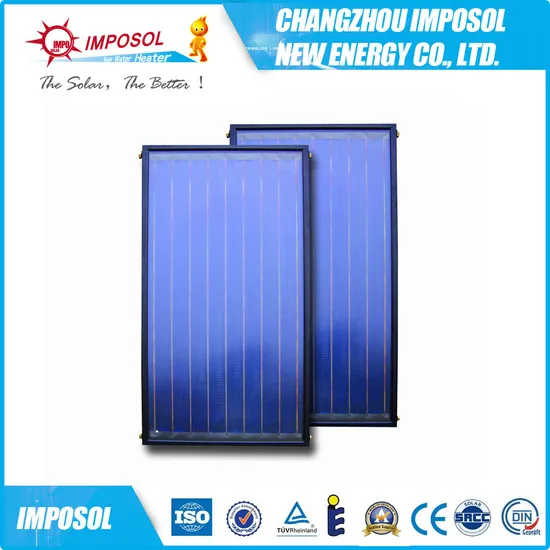

High Quality Black Chrome Flat Plate Solar Collector

Product Description

Model	IPRB E 2.0B
Dimensions(W×L×H)	2000*1060*80mm
Absorber area m2	2
Absorber area m2	1.8
Conversion facotr η %	77.3
Loss coefficient a1 w/m2K	3.9
Loss coefficient a2 w/m2k2	20.0052
Fluid content L	2.22
Maximum operating pressure	1 Mpa
Temperature of operation	(-)35~150 ºC
Weight empty	33 KG
Absorber	aluminum, δ=0.2mm
Coating	Magnetron Sputtering Blue Coating
Header pipe	Copper T2, Φ22*0.6*1060mm, 2pcs
Riser pipe	Copper T2, Φ10*0.6mm, 8pcs
Absorber core welding type	Laser or ultrasonic welding
Absorptance	≥95%±2%
Emittance	≤4%±2%
Glass cover	Low iron rohbic tempered glass:3.4 mm
Dimension of glass sheet	1988×988mm
Transmittance of glass	87%~91%
Frame	aluminum, δ=1.0mm
Color of the frame	Black or silver
Insulation material	Glass wool + HDPE + EPDM
Insulation thickness	40mm
Back Sheet	Galvanzied steel :0.3mm
Cover Sealing Material	Metal/EPDM+metal
Packing	Nautral carton
Packing dimensions	2020*1100*90

Model	IPRB E 2.0C
Dimensions(W×L×H)	2000*1060*80mm
Absorber area m2	2
Absorber area m2	1.8
Conversion facotr η %	77.3
Loss coefficient a1 w/m2K	3.9
Loss coefficient a2 w/m2k2	20.0052
Fluid content L	2.22
Maximum operating pressure	1 Mpa
Temperature of operation	(-)35~150 ºC
Weight empty	33 KG
Absorber	aluminum, δ=0.2mm
Coating	Blue Titanium
Header pipe	Copper T2, Φ22*0.6*1060mm, 2pcs
Riser pipe	Copper T2, Φ10*0.6mm, 8pcs
Absorber core welding type	Laser or ultrasonic welding
Absorptance	≥95%±2%
Emittance	≤4%±2%
Glass cover	Low iron rohbic tempered glass:3.4 mm
Dimension of glass sheet	1988×988mm
Transmittance of glass	87%~91%
Frame	aluminum, δ=1.0mm
Color of the frame	Black or silver
Insulation material	Glass wool + HDPE + EPDM
Insulation thickness	40mm
Back Sheet	Galvanzied steel :0.3mm
Cover Sealing Material	Metal/EPDM+metal
Packing	Nautral carton
Packing dimensions	2020*1100*90

Model	IPRB E 2.0A
Dimensions(W×L×H)	2000*1060*80mm
Absorber area m2	2
Absorber area m2	1.8
Conversion facotr η %	77.3
Loss coefficient a1 w/m2K	3.9
Loss coefficient a2 w/m2k2	20.0052
Fluid content L	2.22
Maximum operating pressure	1 Mpa
Temperature of operation	(-)35~150 ºC
Weight empty	33 KG
Absorber	aluminum, δ=0.2mm
Coating	Black Chrome
Header pipe	Copper T2, Φ22*0.6*1060mm, 2pcs
Riser pipe	Copper T2, Φ10*0.6mm, 8pcs
Absorber core welding type	Laser bonding welding
Absorptance	≥95%±2%
Emittance	≤4%±2%
Glass cover	Low iron rohbic tempered glass:3.4 mm
Dimension of glass sheet	1988×988mm
Transmittance of glass	87%~91%
Frame	aluminum, δ=1.0mm
Color of the frame	Black or silver
Insulation material	Glass wool + HDPE + EPDM
Insulation thickness	40mm
Back Sheet	Galvanzied steel :0.3mm
Cover Sealing Material	Metal/EPDM+metal
Packing	Nautral carton
Packing dimensions	2020*1100*90

Model	Lighting Area(m2)	Vacuum Tube			TankNet Capacity(Liters)	Overall Capacity (Liters)	20GP/10HQLoadingQty (sets)
		Φ(mm)	L(m)	NO.
IPJG47581810-GS/SS	1.4	58	1800	10	85	116	71/172
IPJG47581812-GS/SS	1.68	58	1800	12	100	137	32/150
IPJG47581815-GS/SS	2.1	58	1800	15	125	172	52/125
IPJG47581816-GS/SS	2.24	58	1800	16	135	185	48/116
IPJG47581818-GS/SS	2.52	58	1800	18	150	206	43/105
IPJG47581820-GS/SS	2.8	58	1800	20	170	232	39/96
IPJG47581824-GS/SS	3.36	58	1800	24	200	274	34/82
IPJG47581830-GS/SS	4.2	58	1800	30	250	343	28/68
IPJG47581836-GS/SS	5.04	58	1800	36	300	412	23/57
IPJG47471515-GS/SS	1.35	47	1500	15	110	134	62/152
IPJG47471518-GS/SS	1.62	47	1500	18	135	164	54/131
IPJG47471520-GS/SS	1.8	47	1500	20	150	182	50/122
IPJG47471524-GS/SS	2.16	47	1500	24	175	213	43/104
IPJG47471530-GS/SS	2.7	47	1500	30	220	268	34/84
IPJG47471536-GS/SS	3.24	47	1500	36	260	318	29/71

Company information
Changzhou Imposol New Energy Co., Ltd. is an environmental company with rich experience in the solar energy research and development, production and marketing. We specialize in manufacturing various types of solar water heaters, characteristic products are copper coil solar water heaters, Jacketed type tanks, heat pipe solar collectors, U-type solar collectors. Also sales of air source heat pump heating engineering related water tank, project manifold, accessories, etc.
We won ISO9001:2000, CE, SGS, SOLARKEYMARK, SRCC certificate since the company established. In 2013 was rated as "high-tech enterprises in Jiangsu province". At the same time won the "Changzhou well-known famous brand". For many years by the national quality supervision departments rated the quality qualified products. We has declared by a dozen patents of invention and utility model.
Our products are mainly export-oriented. Now we have more than 1000 foreign customers, exported to more than 80 countries. And supporting OEM production for domestic brand enterprises, large enterprise. With heavy quality, good reputation to win customer consistent high praise.
Imposol believe in "quality bring future". its forward-looking design, novel and practical, elegant style has become a peer leader, industry model.
Thermal project application
1.Split villa water heater system
2.Independent project Systems
3.Senior household hot water system
4.Centralized collector heat storage system
5.Centralized collector household water heating system
6.Centralized collector water heating system
