Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Electrical
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Max. Drilling Capacity
40mm
Max Travel of Head Stock
250mm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
Production Capacity
100 Sets Monthly
Product Description

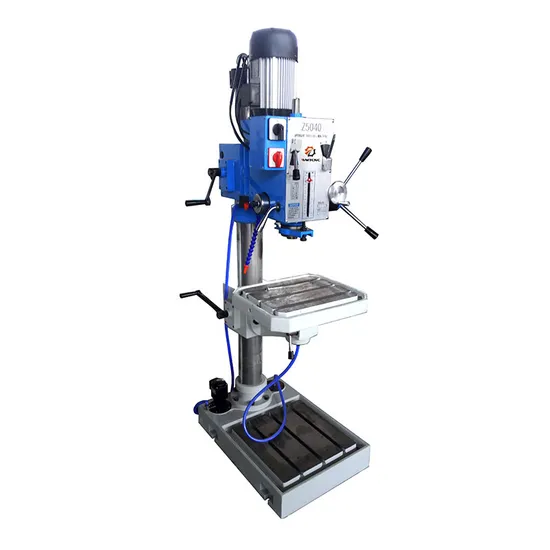

Vertical Type Drilling Machine Z5040 Features
(1)Drilling, milling and tapping(2) Head swivels 360 degree horizontally(3) Headstock and Worktable up & down perpendicularly(4) Super high column(5) Precision micro feed(6) Positive spindle lock(7) Distinct auto device for releasing tools, operate easily(8) Geared drive, lower noise
Main Specification
Specification | Z5032/1 Z5040/1 Z5045/1 | Z5032 Z5040 Z5045 |
Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm |
Spindle taper | MT3/MT4/R8 |
Spindle travel | Φ130mm |
Step of spindle speed | 6 steps |
Range of spindle speed 50Hz | 80-1250rpm |
60Hz | 95-1500rpm |
Step of spindle auto-feeding | 6 steps | / |
Range of spindle auto-feeding amount | 0.06-0.30rpm | / |
Min.distance from spindle axis to column | 290mm |
Max.distance from spindle nose to worktable | 725mm | 700mm |
Max.distance from spindle nose to stand table | 1125mm |
Max.travel of headstock | Φ250mm |
Swivel angle of headstock(horizontal/vertical) | 360° |
Max.travel of worktable bracket | Φ600mm |
Worktable size of avaliablity | 380×300mm | 730×210mm |
Swivel angle of table horizontally | 360° |
Table leaned | ±45° | / |
Size of stand worktable of avaliability | 417×416mm |
Motor Power | 1.5kw |
Speed of motor | 1400rpm | 1400rpm |
N.W/G.W | 440/490kgs | 470/530kgs |
Packing size | 1850×750×1000mm | 1850×950×1000mm |
Loading amount/20" container | 18pcs | 12pcs |
