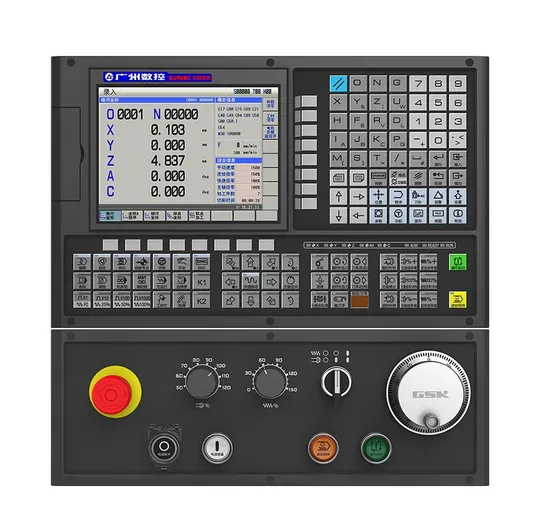

GSK 980MDi Milling and Drilling Machine CNC Controller

GSK 980MDi Milling and Drilling Machine CNC Controller

US$500.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GSK 980MDi
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Type
CNC Controller
Materia
Metal
Displayer
8.4 or 10.4-Inch LCD Display
Linkage Axes
5-Axis Linkage
PLC
Online Editing
Interface
RS232&USB&Network
Connection
Bus
Max Moving Speed
100m/Min
Transport Package
Carton or Plywood
Specification
small
Trademark
GSK
Origin
Guangzhou, China
HS Code
8537101901
Production Capacity
100000sets/Year

Product Description

Product Description
GSK 980MDi is a member of the GSK980MD series product family and is the upqraded product of GSK980MDc
Based on the GSk-Link industrial Ethernet bus control technigue, GSK 980MDi is eauipped with servo drive units and servcmotors with absolute encoders, realizing 5-axis control and high-speed and high-precision motion control, with a minimuminstruction unit of 0.1um and a maximum running speed of 100m/min. lt can extend /0 and is suitable for miling and drllingmachines.
1. With GSK-Link industrial Ethernet bus control
2. 5-axis control, with a minimum control accuracy of 0.1μm and a maximum moving speed of 100m/min
3.With online CAM functions, it can access DXF documents to generate machining programs.
4.It supports the online configuration of servo parameters, real-time monitoring of servo state,and mechanical zero returning without DEC switch.
5.It has a programming guideline and automatic programming function for plane milling.
6.It supports I/O unit extension .
7.It supports the secondary development of display interfaces (custom pages).
8.It supports rigid tapping, cylindrical interpolation, and indexing table control.
9.It supports high-speed mold machining with small line segment programs.
10.It supports the control of peripheral axes, and there are a total of 5 control groups of peripheral axes.
11.It supports the breakpoint data recovery by the one-click.
12.It supports rigid tapping and roundness and waveform analysis.
13.It has the function of torque protection.

High-speed and high-precision control
GSK-Link industrial Ethernet buses are used. with a maximum running speed of 100m/min. Servo motors withhigh-resolution absolute encoder and GR series servo drivers as standard, realizing high-precision control of thefeed and CS axes.
Online CAM function
After CAD documents are imported to the system, they can be displayed and post-processed by the system, and then the machining programs for drilling and groove milling can be automatically generated without any programming.
High-speed mold machining with small line segment procedures
For small line segment programs generated by UG,Mastercam, and other programming software,high-speed and high-precision mold machining can be realized.

Peripheral axis control
Peripheral axis control can be programmed independently or in combination with the main program as an independent channel control.
One clamping can realize the simultaneous machining of 4 different programs, which improves the efficiency by 4 times.
One -click breakpoint recovery

Technical Specification

installation dimension
