Basic Info.
Application
Filter, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages
Type
Stainless Steel Plain Wire Mesh
Material Type
Stainless Steel Wire
Weave Technique
Plain Weave
Wire Mesh Width
158mm 202mm
Transport Package
Wooden Box
Production Capacity
300000 Pieces
Product Description
Product Feature
Stainless Steel Materials
Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of metal wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses. The materials include 204C3, 204C2, 301, 301L, 301LN, 304, 304J1, 304L, 304N, 305, 309S, 310S, 314, 316, 316L, 316Ti, 317L, 321, 347, 370, 405, 409L, 410, 410L, 410S, 420J1, 420J2, 425M, 429, 430, 436, 436L, 439, 441, 443, 444, 445, 904L, S32101, S30815, S32304, S32305 ,ect
Product Name: | Woven Wire Mesh, Wire Cloth |
Stainless Steel Grade: | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
Special Material Options: | Inconel, Monel, Nickel, Titanium, etc |
Wire Diameter Range: | 0.02 - 6.30mm |
Weave Types: | 1 - 3500mesh |
Mesh Width: | Plain Weave,Twill Weave,Dutch or 'Hollander' Weave,Plain Dutch Weave Twill Dutch Weave,Reverse Dutch Weave,Multiplex Weave. |
Mesh Length: | Standard less than 2000 mm |
Mesh Type: | 30m rolls or cut to length, minimum 2m |
Production Standards: | Rolls and sheets are available |
Main Weaving Type
1.1 Plain Weave Plain weaving refers to the weaving method in which one warp thread on one weft thread and one weft thread on one warp thread. It is the most common and simplest weaving method.
1.2 Twill Weave Twill weaving is the interlacing of a single weft thread and a double warp thread, resulting in twill threads
that appear to be parallel on the surface.

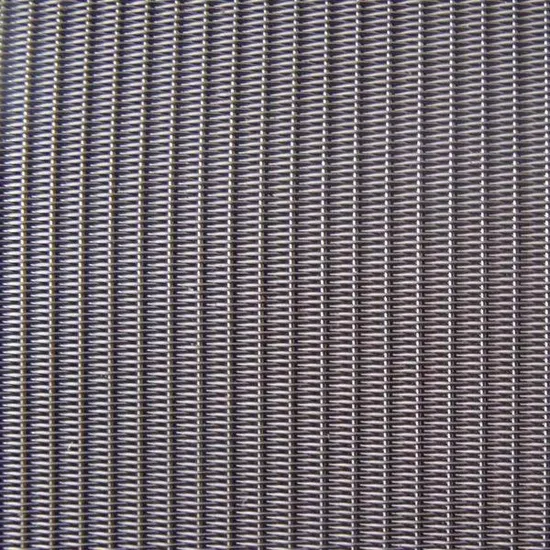

1.3 Dutch Weave Dutch weave in which the warp and weft threads are of different diameters. Dutch weave is divided into plain Dutch weave, twill Dutch weave and reverse Dutch weave. 1.4 Five-heddle Weave Each warp thread crosses over and under every 4 weft threads and vice versa and other type below.
Mesh Cout
Display of Mesh Specifications
learn more from our catalogue
Applications filtering and sieving powder, chinaware printing, porcelain clay and glass, grain and filtering gas and liquid in industries. window screen, gutter guard mesh, vibrating screen, and test sieveautomotive mesh,ventilation , water tank, air-condition and engine. out space exploration and research, power generation, electronic information security, high frequency scientific and medical equipment and aviation designing cages for birds and animals electronic security systems decorating the facade, walls, ceiling in restaurants, hotel, coffee shops and even at homes automotive mesh,ventilation , water tank, air-condition and engine.
