US$5,000.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Product Type
Extrusion Molding Machine
Feeding Mode
Multiple Feed
Assembly Structure
Integral Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Folding Width of Products
500mm/1000mm
Transport Package
Wooden Case/Wooden Block/in Nude
Production Capacity
20set/Month
Product Description

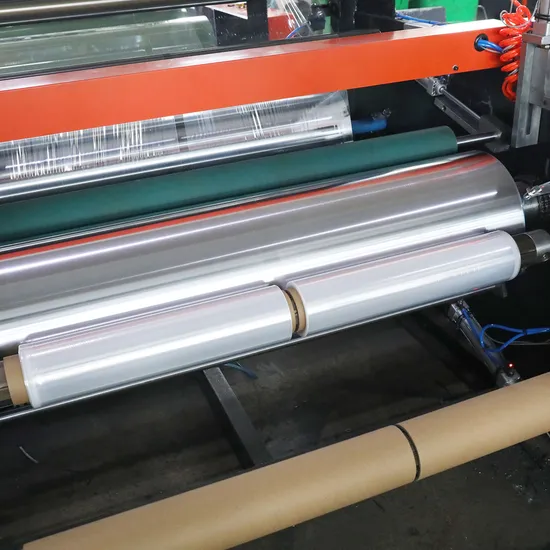

Fangtai Double-Layer Co-Extrusion Stretch Film Making Machine
Use This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film.The film has good tensile strength,anti-pricking ability and impact strength.Its good shriking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.The transparency and tensile strength of this product can make the packaging beautiful,economical and practical.The film can be widely used in wrapping or palletized goods.It is a good substitute for hot shrinking packaging film during transportation.
This machine can be equipped with gravure printing machine, one color printing.
OPTIONAL EQUIPMENT
1)auto loader
2)air shaft
3)auto dry hopper
4)electric changer
5)hydraulic net changer
6)glue pump
Main Technical Variables
Model | FT-500(Double) | FT-600(Double) |
Diameter of Screw Stem | φ55mm*2 | φ55mm*2 |
Major Diameter Ratio of Screw Stem(L/D) | 28:1 | 28:1 |
Rational Speed of Screw Stem | 10-120rpm | 10-120rpm |
Folding Width of Products | 200-500mm | 200-600mm |
Thickness | 0.015-0.05mm | 0.015-0.05mm |
Main Motor Power | 15kw*2 | 15kw*2 |
Heating Power | 30kw | 72kw |
Max.Output(kg/h) | 40 | 120 |
Machine Weight | 3T | 3.5T |
Overall Dimensions (L*W*H)(mm) | 4500*2600*2550 | 5000*2800*2600 |
