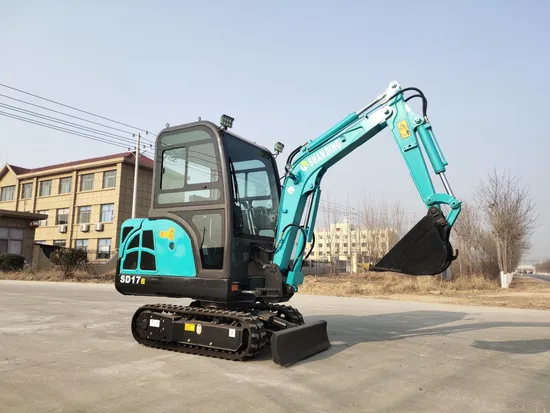

Shanding Excavator SD17b 1.6 Ton From China with Cheap Price Small Digger
Basic Info.
Model NO.
17B
Type
Crawler Excavator
Usage
Special Excavator, Faming
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wooden Box
Trademark
shanding
Origin
China
HS Code
8429521200
Production Capacity
10000
Product Description
| Excavator overall size | ||||||
| Total (length*width*height) | 3635x990x2300 mm (with cab) | |||||
| Track length*width | 1450mm*230mm | |||||
| Platform ground distance | 470 mm | |||||
| Chassis width | 1000 mm | |||||
| Tail radius of rotation | 1085mm | |||||
| Wheel base | 1045mm | |||||
| Bulldozer length | 970mm | |||||
| Bulldozer width | 220mm | |||||
| Max.upgrade height of bulldozer blade | 310mm | |||||
| Working range | ||||||
| Max.digging depth | 1855 mm | |||||
| Max.digging height | 2945 mm | |||||
| Max.digging radius | 3848 mm | |||||
| Min. radius of gyration | 1640 mm | |||||
| Max.dumping height | 2100mm | |||||
| Max. vertical digging depth | 1855mm | |||||
| Max.digging depth of bulldozer blade | 154mm | |||||
| Bulldozer blade departure angle | 32º | |||||
| Technical parameter | ||||||
| Model | SD17-9 | |||||
| href="#/javascript:;" Operating mode | Mechanical lever | |||||
| Over weight | 1600kg | |||||
| Bucket width | 480mm (Any size can be customized) | |||||
| Bucket capacity | 0.05cbm | |||||
| Pump | FUTAI 309 ( gear pump ) | |||||
| Valve | HUSCO ( USA ) | |||||
| Walking motor | SANYANG | |||||
| Rotary motor | EATON (USA) | |||||
| Track type | Rubber Track | |||||
| Closed cab | Can be installed | |||||
| Bucket digging force | 10.5kn | |||||
| Arm digging force | 13.6kn | |||||
| Walking system | ||||||
| Motor type | Cycloid motor | |||||
| Walking speed | 2 km/h | |||||
| Max.traction | 12.1kn | |||||
| Climb ability | 30º | |||||
| Type of track tension device | Butter oil cylinder and buffer spring | |||||
| Rotary system | ||||||
| Hydraulic motor | With overload valve | |||||
| Slewing bearing | Inner tooth, four ball type | |||||
| Swing speed | 10 rpm | |||||
| Hydraulic system | ||||||
| Pump type | Gear pump , three pumps system | |||||
| Front pump | 17.6L/min 16Mpa | |||||
| Middle pump | 17.6L/min 16Mpa | |||||
| Last pump | 6.6L/min 15Mpa | |||||
| Oil suction filter with metal filter with accuracy of 10µ | ||||||
| Electrical system | ||||||
| Storage battery | 12V *80Ah | |||||
| Capacity | ||||||
| Fuel tank | 21L | |||||
| Cooling circuit | 5.5L | |||||
| Radiator | 1.6L | |||||
| Engine body | 3.9L | |||||
| Engine oil circuit | 3L | |||||
| Hydraulic circuit (pipeline and fuel tank ) | 47L | |||||
| Hydraulic oil tank | 30L | |||||
| Walking reducer | 2×0.4L | |||||
| Swing speed | 10 rpm | |||||
| Grounding specific pressure | 35kgf/cm² | |||||
| Oil cylinder | ||||||
| cylinder diameter (mm) | Rod Diameter (mm) | Route or distance (mm) | Full Extension (mm) | Full Shrinkage (mm) | ||
| Arm cylinder | 60 | 35 | 360 | 965 | 605 | |
| Bucket cylinder | 60 | 35 | 375 | 970 | 595 | |
| Boom cylinder | 60 | 35 | 280 | 780 | 500 | |
| Swing cylinder | 60 | 35 | 280 | 780 | 500 | |
| Bulldozer cylinder | 60 | 35 | 100 | 450 | 350 | |
| Laidong engine | ||||||
| Model | LL380B | |||||
| Rated power/speed | 14.7kw / 2350r/min | |||||
| Type | 4 cycle, inline,water cooling | |||||
| Size | 569×525×565 mm | |||||
| Combustion system | Direct injection , Electric injection | |||||
| Weight of engine | 165kg | |||||
| Number of cylinders | 3 | |||||
| Displacement | 1.356L | |||||
| Oil wear | ≤ 238 g/kw.h | |||||
| Bore | 80mm | |||||
| Stroke | 90mm | |||||
