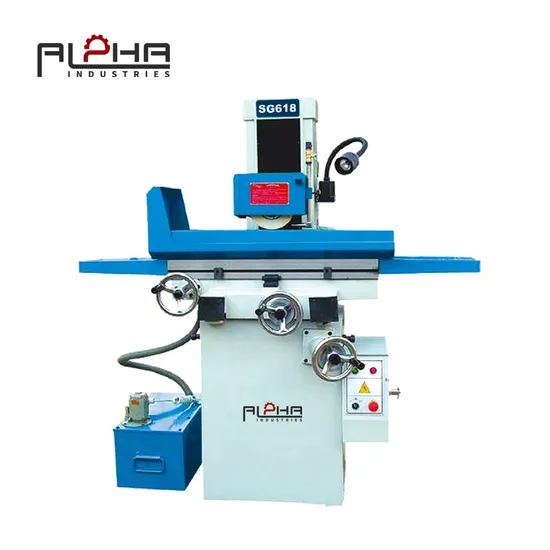

High-Precision Surface Grinder Sg618/ Sg820 for Metalworking

High-Precision Surface Grinder Sg618/ Sg820 for Metalworking

US$15,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SG618/ SG820
Abrasives
Grinding Wheel
Controlling Mode
PLC
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Specification
1100x1020x1800 mm
Trademark
Alpha industries
Origin
China
Production Capacity
200 Sets/Year

Product Description


Product Parameters
Model No. Unit SG618 SG820
Max.worktable travel mm 500x190x335 520×220×490
Worktable size(LxW) mm 500x190 530×220
Working size(LxW) mm 460x180 480×200
Distance between worktable
surface to spindle center
mm 335 490
Max. loading capacity kg 100 200
Cross feed mm 0.02/Graduation 2.5/revolution 0.02/Graduation 2.5/revolution
Vertical feed mm 0.01/Graduation 1.25/revolution 0.01/Graduation 1.25/revolution
Wheel size(DiaxWxBore) mm 180x12x31.75 200×16×31.75
Spindle speed rpm 2850 2850
Main motor kw 1.1 1.1
Coolant pump kw 0.24 0.24
Packing size mm 1100x1020x1800 1350×1160×1960
N.W./G.W. kg 700/800 800/900

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
