3t Dual-Bull Wheel Winch

Product Description

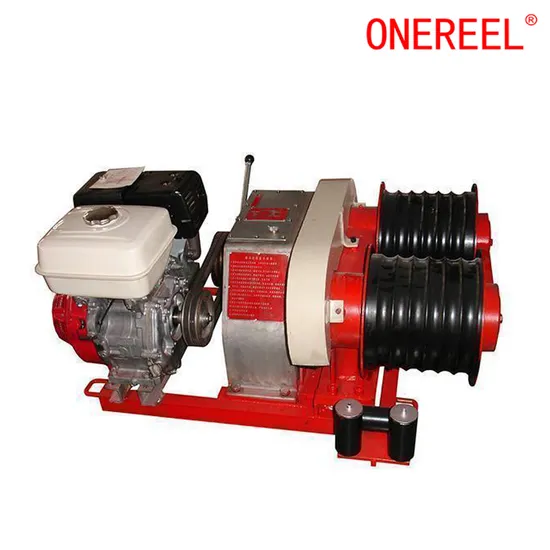

3T Dual-Bull Wheel Winch
Application:
This three ton dual bull wheel powered winch can be not only applied to the erecting of pole pylon and the laying of cables, but also used for hoisting the mechanical equipment as well as hauling and stringing the conductors. The dual bull wheel structure helps our product significantly reduce the damage to the steel wire rope.
Engine Powered Winch Type
1. Diesel engine. 2. Gasoline engine. 3. Elecric Motor.
Specifications

Item Number		09151	09152
Model		JJCS-30	JJQS-30
Engine	Model	Diesel R175A	Honda GX270
	Power (hp)	6	9
	Speed (rpm)	2600	3600
Traction Force (kN)/ Pulling Speed (rpm)	Slow	30/5.7	30/7.43
	Medium	18.9/9.1	19.2/11.8
	Quick	7.6/22.7	7.2/31.4
	Reverse	-/6.5	-/8.4
Diameter of Drum Groove (mm)		Φ240	Φ240
Overall Dimension (mm)		1000×670×600	1000×670×600
Weight (kg)		260	242

ONEREEL is specialized in the design and manufacture Steel Spools, Plastic Spools, Cable roller, Yarn Bobbin, aluminum spool , Cable Reel Stand, Sheave Pulley, Cable Conveyor, Hydraulic Puller Tensioner, Gin Poles, Cable Pulling Winch, Safety Tools, Wire Grip, Plastic Parts, and Pump in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
ONEREEL is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels. With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions.
