Hsg Factory Sale 1.5kw 2kw 3kw 6kw 12kw Sheet Metal 3015 Open CNC Fiber Laser Cutting Machine 1500W 2000W 3000W 6000W Cutting Laser Machineprice

Product Description

HSG factory Sale 1.5kw 2kw/3kw Sheet Metal 3015 Open CNC Fiber Laser Cutting Machine 1500W 2000W 3000W 6000W Price

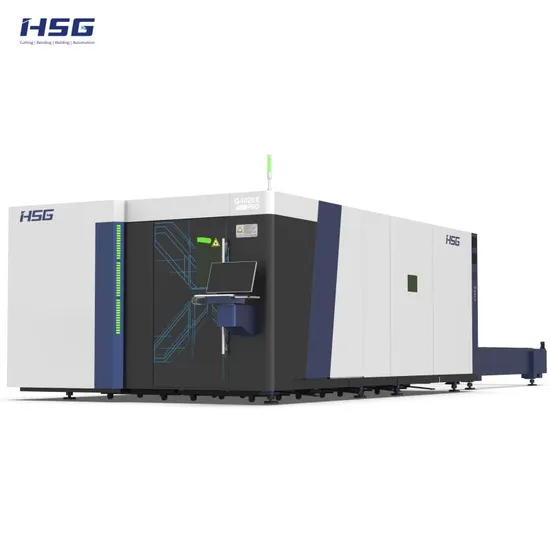

GA IV (Double Exchange Platforms Laser Cutting Machine 1500-12000W)has been technically upgraded for four times. It has double exchange platforms and four different models (3000*1500mm, 4000*2000mm, 6000*2000mm, 6000*2500mm) to satisfy different cutting demands of customers. Application
Applicable materials: stainless steel, carbon steel, aluminum, brass, copper, galvanized plate and cold-rolled sheet, and more.
Application industry: The laser cutter is widely used for external processing of metal sheets, home decoration (window grilles, laser-cut screen door), elevators, aerospace components,instruments and more
Product Parameters
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Technical Parameters	GA IV
Power	1500-6600W		3000-8000W	6000-12000W
Processing Format (L*W)	3000 *1500mm	4000 *2000mm	6000 *2000mm	6000 *2500mm	8000*2500mm
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
No-load Speed	140m/min		120m/min
Acceleration	1.5G				1.0G
Loading Weight of Platforms	800kg	1000kg	1800kg	2300kg	3200kg
Overall Dimensions (L*W*H)	8850*2950*2250mm	10300*3460*2250mm	15420*3460*2250mm	15500*3960*2250mm	19800*4010*2250mm

Detailed Photos
Alpha T Bus CNC System /HSG-NEST Nesting Software /Double Exchange Platforms / Extruded Aluminum Beam
1. Alpha T Bus CNC System
Alpha T can make data transmission via a network cable.
Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST nesting software
* Bus refers to data transmission mode via on-site bus control system.
2. Double Exchange Platforms,Taper Pins Positioning
The double platforms are driven by 16A wide chains and positioned by taper pins. The entire exchange process is shown on PLC touch screen.
The exchange-driven motor is front-placed to leave enough space for loading & unloading and protect metal plate casing from collision.

3. Carbon Steel Welded Machine Bed
The machine bed has 500Mpa tensile strength and receives lonnealing and vibration aging to remove its stress.
Its rear floorstand has the reinforced loading points, making thick sheet cutting possible.

4. GA IV offers many optional features to all global customers, such as, top cover (with blower fans), pneumatic door between exchange platforms, safety light curtain, laser-proof glass, Lantek nesting software, supervising cameras. You can choose as you needed.
5. We are strict in checking the machine quality before delivery to you. Our machine is packaged at high standards during long-distance sea transport.
HSG factory Sale 1.5kw 2kw/3kw Sheet Metal 3015 Open CNC Fiber Laser Cutting Machine 1500W 2000W 3000W 6000W Price
