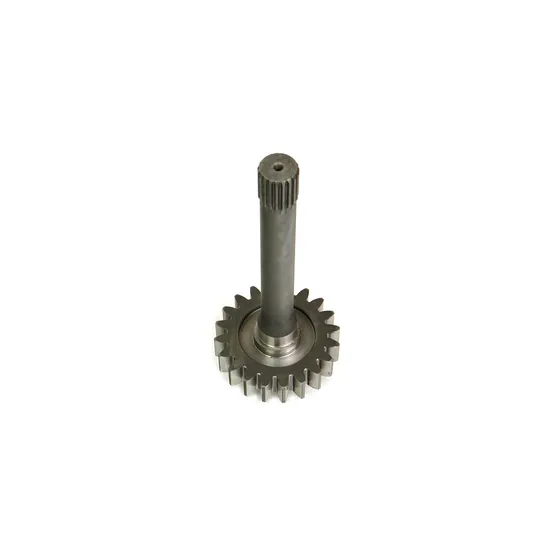

High Quality Precision Steel Machining Involute Spline Gear Shaft for Industrial Machinery
| US$0.50-100.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
FD-GS0012
Corrosion Resistance
High Corrosion Resistance
Journal Diameter Dimensional Accuracy
IT6-IT9
Journal Relative Position Accuracy
0.01-0.03mm
Journal Surface Roughness
2.5-0.63μm
Shaft Type
Gear Shaft
Strength
High Strength
Surface Finish
Blackening
Tolerance
Precision Tolerance
Module for Gear
M0.5-M20
Module for Spline
M0.5-M5
Precision Grade for Gear
ISO/DIN 5-10
Precision Grade for Spline
ISO/DIN 6-10
Size
Based on Requirement
Lead Time
20-30 Days for Sample, 30-45 Days for Bulk Order
Testing Machine
CMM,Mechanical Test Machine,and So on
Transport Package
Carton Box, Wooden Case
Specification
Based on requirement
Trademark
Feida
Origin
China
Production Capacity
15000 Tons/ Year
Packaging & Delivery
Package Size
28.00cm * 28.00cm * 24.00cm
Package Gross Weight
10.000kg
Product Description
High quality precision steel machining involute spline gear shaft for industrial machinery
Our advantage:High efficiency processing machines, high precision measuring equipments and muti-funtional heat treatment furnace;More than 30 years gear manufacturing experience;More than 10 years cooperating experience with global 500Related products:Product Parameter:
| Products | Gear Shaft |
| Service Type | OEM & ODM Service |
| Drawing Format | Jpg/.Pdf/.Dxf/.Dwg/.Igs./.Stp/X_t. etc |
| Spline Type | Involute Splines/ Rectangular Splines |
| Gear Type | Spur Gear/ Helical Gear/ Bevel Gear |
| Module For Gear | M0.5-M20 |
| Module For Spline | M0.5-M5 |
| Material | Carbon Steel (e.g. 45) Alloy Steel (e.g. 40Cr, 42CrMo, 16MnCr5, 20CrMnTi) Stainless Steel (e.g. 304, 630, 1.4104, 1.4057) Aluminum Alloy (e.g. 6061, 7075) Bronze, Brass, Nylon etc |
| Precision Grade For gear | ISO/DIN 5-10 |
| Precision Grade For Spline | ISO/DIN 6-10 |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding, Nitriding, etc. |
| Surface Treatment | Blackening, Phosphating, Electroplating, Anodic Oxidation, QPQ, Painting |
| Size/ Pressure Angle / Hardness/ Tolerance | Based on requirement |
| Machining Process | Turning, Milling, Grounding, Drilling, Tapping, Welding Spline/gear Hobbing, Spline/gear Shaping, Spline Broaching, Spline/gear Grinding, Gear Shaving, Gear Milling |
| Testing Machine | Mechanical Test Machine, Material Analysis Spectrometer, Coordinate Measuring Machines (CMM), Roughness Tester, Hardness Tester, etc |
| Package | Anti-rust Paper, Plastic Box, Mesh Bag, Carton Box, Wooden Case |
| Application | Engineering Machinery, Construction Machinery, Heavy and Light Trucks, Agricultural Machinery, Industrial Elevators, Forklift, Electrical Equipment, General Machinery and Other Different Gear Reducers. |
| Lead Time | 20-30 days for sample, 30-45 days for bulk order |
| Production Capacity | 15000 tons/ year |
Q1.Are you a manufacturer or a trading company?
A:We are a factory and established in 1988.
Q2.How to guarantee quality?
A:ISO 9001:2015 Quality system authentication.
Q3.How can I customize?
A:Sample or technical drawings is ok for customization.
Q4.How about your delivery time?
A:20-30 days for sample, 30-45 days for bulk order.
Q5.What is your MOQ?
Normally, 100pcs,but can accept low quantity in some special conditions.
Q6.How do you make good bussiness with your clients?
We has always adhered to the core values of "the most reliable quality and the best service", and continued to improve and optimize ourselves.
