Gypsum Board Ceiling Steel Furring Channel Making Machine Omega Channel Roll Forming Machine
| US$6,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NM237
Certification
CE, ISO9001
Customized
Customized
Condition
New
Control Type
Electric
Automatic Grade
Automatic
Name
Omega Light Steel Keel Roll Forming Machine
Coil Material Thickness
0.3-0.8mm
Processing Material
Galvanized Steel
Roller Material
Cr12MOV
Shafts Material
Gr12, Heat Treatment HRC58-60
Forming Speed
10-15m/Min
Operation Type
Touching Screen with Buttons
Language
English and Chinese or as Customer′s Requirement
Weight
3 Tons
Machine Color
Yellow and Blue
Transport Package
Control Box and Easy Damaged Parts: Protective PA
Specification
3500mm*500mm*700mm(L*W*H)
Trademark
Nexus Machinery
Origin
Cangzhou, China
HS Code
8455221000
Production Capacity
30 Sets / Months
Product Description

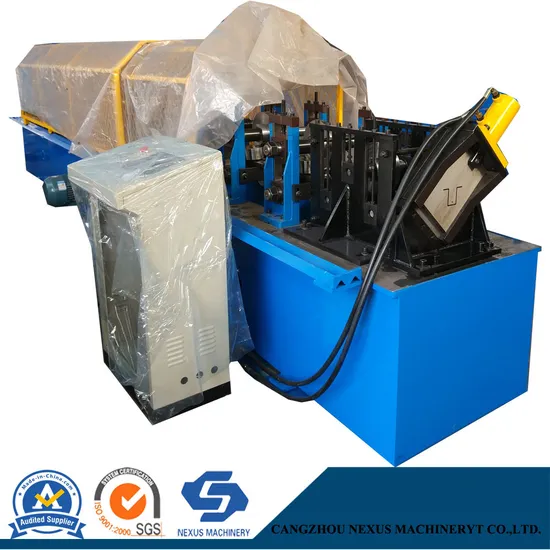

Gypsum Board Ceiling Steel Furring Channel Making Machine Omega Channel Roll Forming MachineGypsum Board Ceiling Steel Furring Channel Making Machine Omega Channel Roll Forming Machine includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
Technical Parameters:
| Feeding material | PPGI / GI plate |
| Frame type | steel board welded |
| Width of the plate | 110mm |
| Thickness of the plate | 0.3 - 0.75mm |
| Dimensions | 3500mm*800mm*700mm |
| Diameter of the shaft | Φ45mm |
| Roller station | 12rows |
| Productivity | 15-20m/min |
| Motor power to drive the machine | 5.5 + 4 kw |
| Voltage | 380V 50Hz 3phase or as per requirement |
| Weight | 3000kgs |
| Material of the cutting head | Gr12 , heat treatment HRC58-60 |
| Machine frame | steel board welding frame |
| Side board thickness | 25mm |
ABOUT US:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
