Incense Powder Making Machine Wood Sawdust Grinder Powder Mill

Product Description

Product Description
Incense Powder Making Machine Wood Sawdust Grinder Powder Mill
1-->CWF series powder grinder machine is compact in design, reasonable in structure, and has air-selected type, no screen and no net. The machine is equipped with grading mechanism, which can make the crushing and grading complete at one time.
2-->CWF series powder grinder machine is mainly using for crushing different kind of grain, biomass and chemical materials into fine powder, output size can be 60 mesh to 2000 mesh.
3-->CWF series It is ideal equipment for crushing pesticides, chemical industry, animal feeding industry, pharmaceuticals industry and other industries.

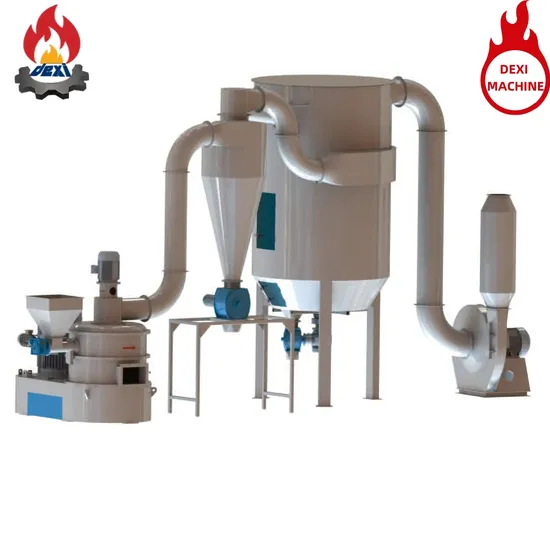

Working Principle:
Through screw conveyor, feeding the materials into the grinding chamber, the material will been cut and crushed by high-speed rotating hammers.
After grinding, the fine material is transported into cyclone separator by negative pressure air transportation, and the fine material will been discharge from cyclone bottom airlock.
And some very light dusting will go into the behind pulse dust filter, then clean air come out, roughly no material lost. Product Parameters

Model	Power (KW)	Capacity (kgs/hour)	Product size (Mesh)	Grinding ratio	Disc diameter (mm)	Machine Dimension (mm)
CWF30	15/18.5	40-300	60-2000	≥95%	300	4500x1600x2600
CWF40	30/37	80-1000	60-2000	≥95%	400	5500x2000x3900
CWF50	37/45	200-2000	60-2000	≥95%	500	5600x2000x3900
CWF75	75/90	360-3000	60-2000	≥95%	750	7000x2500x4200
CWF90	90/110	500-5000	60-2000	≥95%	900	8300x3500x4000
CWF110	110/132	1000-6000	60-2000	≥95%	1100	1000x4000x5200
CWF130	132/160	1800-10000	60-2000	≥95%	1300	11000x4000x5200
CWF150	160/200	2500-18000	60-2000	≥95%	1500	12500x6500x6500
CWF170	220/250	3500-20000	60-200	≥95%	1700	14000x7500x7500

Note: Due to the differences in raw materials, output will be different.
Different models of machines have different sizes.Detailed Photos
Product Features
The super fine machine features compact design and reasonable structure with wind option.The ultra fine grinding machine is equipped with rating devices which makes a complete crushing and classification.Combined with different raw materials, customize machines of different materials, such as all-steel material; all-stainless steel material.
Stainless steel suitable for food grade work.

Made of iron material

Made of stainless steel material

Product Details
Internal structure of the machine, spare parts require industrial grade 304 stainless steel, heat treated parts, finishing parts.
Wide range of applications.
Long working life.1. GMP and food grade design pulverization.
2. Negative pressure working condition can prevent dust and be suitable for heat sensitive material.
3. Output size is adjustable via air classifier.
4. Feeding rate is automatic controlled. Usage And Packaging
1.Some other grinding machine for salt, sugar, pepper,coffee or product of food, flavoring,pharma, etc are supplied to, pls contact us for more details.
2.Traditional Chinese medicine, roots, stems, corn, rice, pepper, pepper, oil and wheat, soybean, soybean meal, garlic,star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic slices, sugar, saccharin, food, shrimp, pumpkin powder, seasoning.

Size	It depends
Weight	It depends
Packaging Details	1.The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated. 2.For big machine, we will pack the machine inside container directly with steel wires and nails.Then the machine won't move inside the container.
