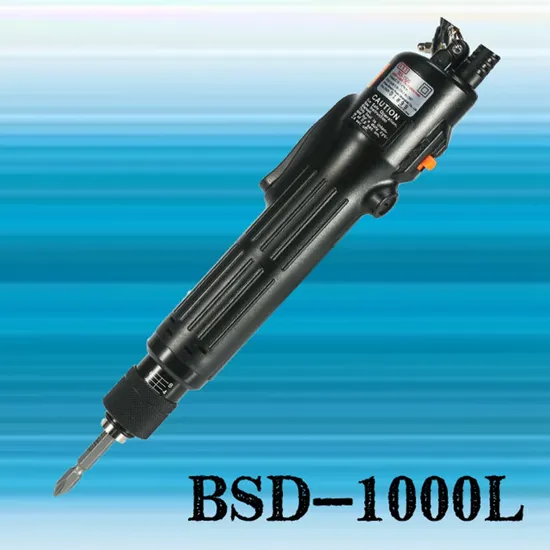

Bsd-1000 Semi-Automatic Electric Screwdrivers (electric power tool) Low Torque Compactbsd-1000
| US$61.17-107.47 | 10 Sets (MOQ) |
Basic Info.
Model NO.
BSD-1000
Voltage
DC Low Voltage
Power Supply Voltage
220V
Automation
Semiautomatic
Power Source
Electricity
Function
Professional, Household
Condition
New
Customized
Non-Customized
Input Voltage
DC 32V
Torque (N.M)
0.05~0.69
Power Consumption
48W
Speed (r.p.m)
1000
Applicable Screw Size
1.4~2.6 mm
Starting Method
Trigger Start
Transport Package
33.5*11*9cm
Specification
DC TYPE ELECTRIC SCREWDRIVER WITH POWER SUPPLY
Trademark
BSD
Origin
China
HS Code
84672990
Production Capacity
50000 Piece/Year
Product Description
Featureshigh temperature-resistant, vibrating-resistant, friendly holder, fashionable appearance, light, good Operation, free from fatigue under long-time using. Small, light body , specially design for the precise needing of tiny screws. Low electric current, stable running, high stability and stop as the screw fastened. Applied to Small appliances,Electronics,Toys,Processing and assembly industry. Made in China. Specifications
| No | Item | Data | ||
| 1 | Torque | 0.05~0.69N.m | 0.5~7kgf.cm | 0.44~6.16Lbf.in |
| 2 | Unloaded Rotation Speed(r.p.m) | 1000 | ||
| 3 | Torque Adjustment | Stepless | ||
| 4 | Screw Size Dia(mm) | 1.4~2.6(Machine Screw) | 1.4.~2.0(Tapping Screw) | |
| 5 | Power Consumption | 48W | ||
| 6 | Weight(g) | 480 | ||
| 7 | Length(mm) | 230 | ||
| 8 | Repeatable Torque Accuracy (%) | ±5% |
External Dimention
Torque Range Reference Chart
Product Configuration1
Successful Project
Company Photo
