Farm Small Scale Production Roving Machine Customized Spindles

Product Description

Product Description

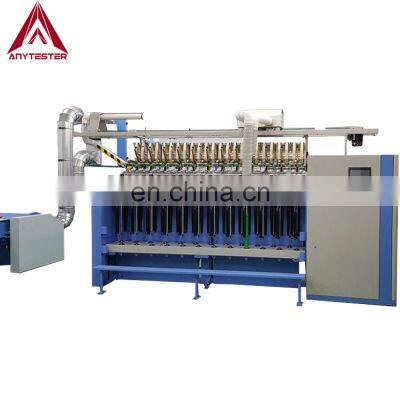

Product DescriptionAT285 Small Scale Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine, ring spinning machine and winding machine) which is widely used in universities, researching center and small scale production, it can be used for both cotton, wool and blend fiber. AT285 Roving Machine is used to make roving from drawn sliver.SpecificationModelAT285Number of spindles12, 24 or more Fiber typeCotton fiber: max. 64mm Wool fiber: max. 220mm or blend fiberSpindle gauge220mmPackage dimensionΦ150×400mmBobbin dimensionΦ45*445mmTwist rangeContinuously adjustableDraft range4.2~12Density for yarn220~1250texPressing formSpring weighting arm pressingBottom roller diameter¢28.5, ¢28.5, ¢28.5, ¢28.5/32, 32, 32, 32mmTop roller diameter¢29, 29, 25, 29mmCleaning deviceNapping roller with revolving suction deviceMax mechanical speed1300rpm Transmission deviceThree, four or five frequency inverter servo motor, optionalControl typeComputerized automatic controlMan-machine interactionTouch screen Winding transmissionGear transmission (timing belt transmission optional) Flyer transmissionGear transmission (timing belt transmission optional)Winding power shaftUniversal shaft Differential deviceNone for 12 spindles Visible oil bath differential box for 24 spindlesReversing deviceSoftware controlYarn forming angleSoftware controlThree auto doffingSoftware controlSingle displayFive lamps indicated on machine headstockTension adjustmentSoftware controlTension fine adjustmentSoftware controlEvenness preventingSoftware controlSliver faults preventingSoftware controlWinding density adjustmentSoftware controlTwist changingSoftware controlFeed-in can diameterΦ400/500/600mmOutput speedMax. 12m/minMachine dimension2900*2200*2600mmApprox. Weight2500KgPower supply3 phase AC380~415V 50HzDetails & Features1. Mini machine, save researching cost and easy to operate and maintain;2. Touch screen & PLC control;3. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;4. Frequency converter of high efficiency to control roll speed;5. Pressurizing system :spring pressure cradle;6. Three-up-three-down drafting structure;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
