Thermal Solar Panel Hot Water Thermodynamic Heat Pump

Product Description

Thermo Industries Thermal Solar Panel Hot Water Thermodynamic Heat Pump
More high-efficiency and energy-saving than the ordinary air source water heater and eco-friendly
24-hours water heater
Specification:
(A)Without build-in water pump and Heat exchanger

Model	TYNRB-15	TYNRB-20	TYNRB-35	TYNRB-50	TYNRB-200
Power	~220V 50/60HZ				380V 50/60HZ
Rated water output temperature (ºC)	55	55	55	55	55
Maximum water output temperature (ºC)	65	65	65	65	65
Rated heat capacity (W)	1600	2000	3500	4500	20000
Rated power input (W)	320	370	680	800	5000
Rated current input (A)	1.4	1.7	3.1	3.7	7.5
Noise (dB(A))	≤45	≤45	≤45	≤45	≤60
Weight (kg)	18	20	23	26	80
Size (L*W*Hmm)	325X225X400		380X280X440		500X400X600
Water tank capacity (L)	100,150	150,200	200,300	300,500	2000
Applicable environment temperature (ºC)	-20~45

B)With build-in water pump and drum

Model	TYN-15	TYN-20	TYN-35	TYN-50		TYN-70
Power	~220V 50/60HZ
Rated water output temperature (ºC)	55	55	55	55		55
Maximum water output temperature (ºC)	65	65	65	65		65
Rated heat capacity W)	1600	2000	3500	4500		7000
Rated power input (W)	320	370	680	800		1400
Rated current input (A)	1.4	1.7	3.1	3.7		6.4
Noise (dB(A))	≤45	≤45	≤45	≤45		≤48
Weight (kg)	18	20	23	26		32
Size (L*W*Hmm)	380X450X450			400X480X480
Water tank capacity L	100	150	200	300		500
Applicable environment temperature (ºC)	-20~45

Main Parts:
compressor: scroll type.
refrigerant: R410a/R22
Heat exchanger/condenser: tube coiled type.
Defrost mode: reversed cycle/4-way valve
Refrigerant throttling mode: expansion valve
water pump: without

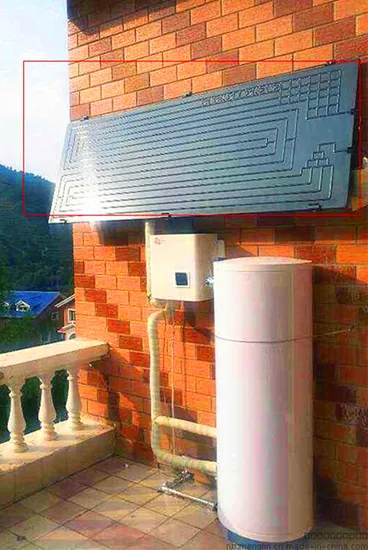

The split type units mean the main unit and the water tank are separate,and that is easy and flexible to select the place of installation.The capacity of the water tank may be made a choice according to family people.
Separate water system and electricity,reliability and safety.
The material of the water tank is adopted the high quality stainless steel. The resin sponge is filled in the interspace between the inner wall and outer, and that is good heat insulation.
By microcomputer controller and automatic intelligentizing mode,within 24 hours hot water supplying setting,timing ON/OFF designation to set freely.
The products are with economy and energy saving, consumption of yearly average of electricity is as same as 65% of the solar water heater and 25% of the electrical water heater.
The products are adopted the theory of thermal transmssion:Compressor operates to discharge the high temperature carrier of the refrigerant and that makes water heat.That is no exhaust gas discharging and waste residue.
The products are adopted the heat exchanger/condenser of the high efficient sealed shell type.The water of the system and the refrigerant operate heat exchanging in the whole dynamic process that protects the tube from dirt.
The products are suitable for family,hotel, barbers, beauty shop, school, hospital, etc.

If any require,pls contact us.
Best wished!
