Hydraulic Trailer Truck Mini Diesel Stationary Hydraulic Piston Concrete Gear Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
After the concrete is pumped, the conveying pipeline should be cleaned immediately, the pump machine should be cleaned, inspection and maintenance and other finishing work should be carried out. (1) Cleaning of conveying pipelines Air washing steps of conveying pipelines a. The pipeline should be equipped with a stop valve, and the stop plate should be inserted to prevent the concrete in the vertical or upward inclined pipe from flowing backward. b. Take out some of the concrete at the mouth of the first straight pipe and connect it to the air wash joint. The joint should be filled with a sponge ball soaked in water in advance, and the inlet and exhaust valves and compressed air hoses should be installed on the joint. c. Install a safety cover at the end of the pipe to prevent concrete injection from hurting people. d. Slowly open the compressed air intake valve, so that the compressed air presses out the sponge ball and concrete. If the pipeline is equipped with a stop valve, it should be in the open position first, and then open the air valve. e. When the concrete in the pipeline has been completely emptied, and the sponge ball has been shot out, the air washing is completed. At this time, the compressed air intake valve should be closed, and then various pipe fittings should be removed.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Project	Unit	HBTS25	HBTS40	HBTS60	HBTS80
Maximum theoretical delivery	m³/h	23	40	60	80
Maximum outlet pressure	Mpa	8	13	13	13-16
Maximum theoretical transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Pumpable concrete maximum particle size	mm	≤50	≤40	≤40	≤40
Most suitable for pumping concrete slump	cm	15-23	15-23	15-23	15-23
Duct inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Host weight	Kg	1900	3400	5000	5600
Dimensions: length × width × height	mm	3300×1600 ×1800	4300×1600 ×1800	5500×1800 ×2000	5800×1800 ×2000

Detailed Photos

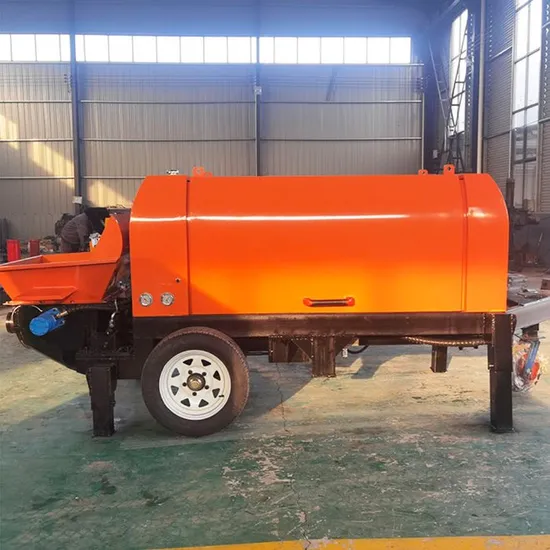

Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
