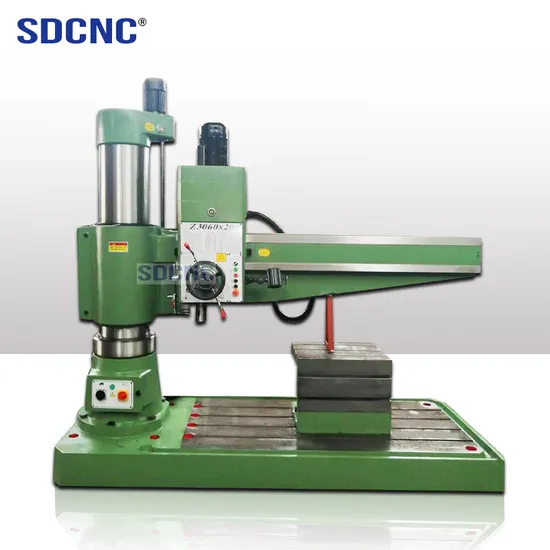

Z3060 High Performance Radial Drilling Machine Model Are in Stock Machine

Z3060 High Performance Radial Drilling Machine Model Are in Stock Machine

US$9,700.00-10,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3060
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Model Number
Z3050
Product Name
Radial Drilling machine
Keyword
Bench Drilling Press Machine
Model
Z3050
Transport Package
Wood Packaging
Specification
2500*1050*2840
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
250.00cm * 105.00cm * 284.00cm
Package Gross Weight
3500.000kg

Product Description


SPECIFICATIONS

Features:
The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.Drilling Machine Technical Parameters:
SPECIFICATIONS: Unit Z3060
Max. drilling diameter mm 63
Distance between spindle axis and column mm 450~2000
Distance between spindle end and working surface of base plate mm 400~1600
horizontal movement of spindle box mm 1600
Work table size mm 800 x 630 x 500
Taper in spindle: No.5
Spindle travel: mm 400
Number of Spindle Speeds: 16
Range of Spindle Speeds: r/min 25-2000
Number of Spindle Speeds: 16
Range of Spindle Feeds: mm/r 0.04 -3.2
Power of main drive motor: kw 5.5
Weight N.W kg 7000
G.W kg 8000
Overall dimensions(L x W x H) cm 308 x 125 x 340
Packing dimension(L x W x H) cm 321X156X 226


our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
