Low Price Slag/Coke/Granite/Limestone/Pebble Crushing Machine Double Teeth Roller Crusher Manufacture

Product Description

Low Price Slag/Coke/Granite/Limestone/Pebble Crushing Machine Double Teeth Roller Crusher Manufacture

1.Product Description of Double Teeth Roller Crusher

Product Name	Double roller crusher
Suitable for	Crushing Ores and Stone
Color	Customizable

Double roller crusher is applicable to the medium and fine crushing of the brittle bulk materials in industry of cement,chemical, electric power, mining, metallurgy, building materials, refractory materials, coal and other industries.
Double roller crusher can also be used for crushing the materials with compression strength less than 160Mpa.
Double roller crusher can be also suitable for the crushing of the materials with high and intermediate hardness in industry of
metallurgy, building materials, refractoryand other industries.
2. Working Principle of Double Teeth Roller Crusher
The double roller crusher should not be put in the place which is not ventilated and rust easily for the long term.
When the double roll crusher is in operation, the machine will generate the non-uniform force. In order towithstand this kind of non-uniform force better, the operator can try to placebatten under the chassis to ensure that the whole machine matches with the strips of batten.
The number of the batten and general cross-section can befound on the layout of the roll crusher and the operator can also choose the batten suitably according to the specific circumstances of the installation.

3. Product Features and Factory Pictures of Double Teeth Roller Crusher
(1)Hammer is featured by wear-resisting and impact resistance byadopting casting of new technology
(2) Particle size may be adjusted according to requirements of customers.
(3) Structure of crusher body is sealing, and dust pollution andash leakage of engine body in crushing plant are solved.
(4) The overall design has advantage of attractive appearance,compact conformation, little wearing parts, which is upgrade
product.
(5) The structure is compact with nine looking, good wearresistance and convenient maintenance.
4.Size Information of Double Teeth Roller Crusher

Type	2PG0425	2PG0640	2PG0740	2PG0850	2PG1060	2PG1260	2PG1560
Roller Diameter(mm)	400	610	700	800	1000	1200	1500
Roller Width(mm)	250	400	400	500	600	600	600
Feeding Size(mm)	≤25	≤25	≤25	≤25	≤30	≤30	≤30
Discharging Size(mm)	2-8	2-8	2-8	2-8	2-10	2-10	2-10
Capacity(t/h)	5-10	10-20	15-30	20-40	30-50	40-70	60-110
Engine Model	Y132M-6	Y180L-6	Y200L-4	Y225M-4	Y250M-4	Y315M-6	Y315L-6
Motor Power (kw)	5.5*2	15*2	30*2	45*2	55*2	75*2	110*2

5. Working Sites of Double Teeth Roller Crusher

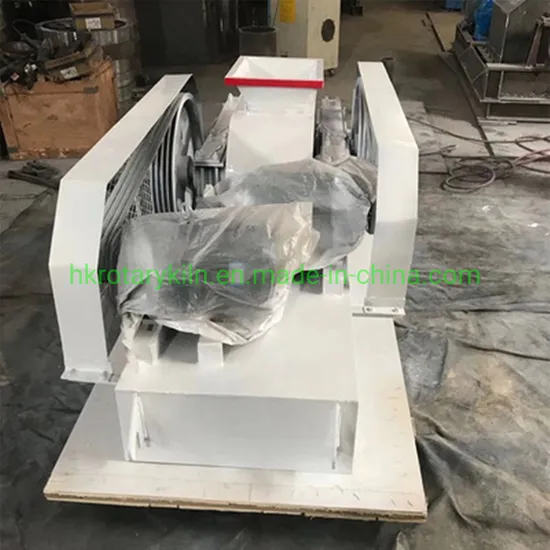

6.Packing&Shipping of Double Teeth Roller Crusher
7.Company Introduction

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!

8.FAQ

1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.--------------------------------------------------------------------------------------
Kindly Note: 1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Final size (mm)
4). Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.
