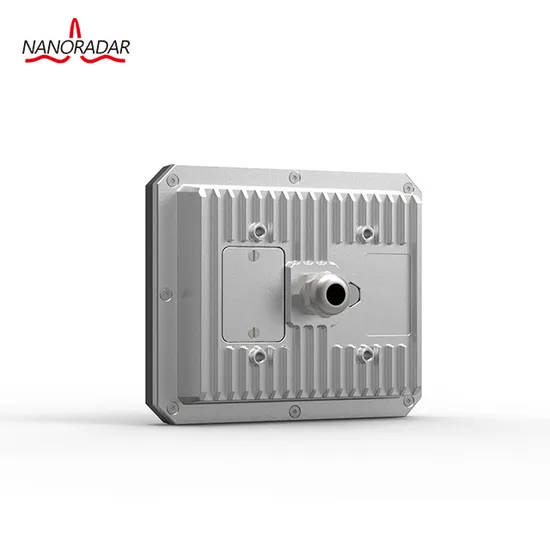

Tsr40 Multi Lanes Speed Radar 90 Meters Detection Distance Millimeter Wave Radar Traffic Speed Measurement Traffic Flow Count and Monitoring Radar Fmcw 60GHz

Product Description

Company ProfileHunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.
Product DescriptionTSR40 multi-lane speed measurement radar adopts "MIMO+DBF" technology, which can detect and track multiple vehicle information in multiple lanes in real time, and periodically report vehicle speed, distance, angle, direction, etc. The TSR40 has accurate positioning and high capture rate. It can simultaneously detect 1-4 lanes, 32 targets, and the farthest detection distance can reach 90 meters. Compact structure, extremely low power consumption, can automatically calibrate the angle according to the installation height, and quickly deploy to various application scenarios on the road.Product Application Areas Traffic flow monitoring Multi lanes speed measurement Retrograde Violation SnapshotThe TSR40 multi lanes speed radar uses an advanced three-transmitter four-receiver planar microstrip array antenna. The receiving antenna contains 32 polarized radiating elements, and the transmitting antenna contains 48 polarized radiating elements. The transceiver antenna uses the Taylor algorithm to perform low sidelobe synthesis on the antenna pattern. The low sidelobe design of the antenna makes the radar less susceptible to interference from ground clutter and targets outside the main beam, which can significantly improve the signal-to-noise ratio of the radar detection target.Product Parameters

Measuring performance to natural targets (non-reflector targets)
Modulation waveform		FMCW
Distance range		2~90m
Capture distance		15~40m(Configurable)
Distance resolution	spot target, none tracking	±0.4 m
Distance accuracy	spot target, none tracking	±0.4 m or±2.5%
Angle range		±28°
Angle accuracy	spot target, none tracking	±0.5°
Speed range		5~200km/h
Speed resolution	spot target, none tracking	0.54km/h
Speed accuracy	spot target, none tracking	±0.36km/h
Target quantity		32
Capture rate		≥95% @50m
Lanes quantity		1~4 lanes, Distinguishable lanes
Number of antenna channels		2TX/4RX=8 channels
Cycle period		80ms
Elevation	-6dB	17°
Horizontal	-6dB	56°
Operation conditions
Radar transmit frequency	ETSI&FCC	61.2~61.5GHz
Transmission capacity	Average/peak EIRP	24dBm
Power supply		12.0V DC
Power consumption		≤4W
Weight		650g
Operation temperature		-40ºC …+70ºC
Storage temperature		-40ºC …+85ºC
Protection class		IP66
Interface
Interface		RJ45/RS485
Hosuing
Material	Housing front/rear	PPO front shell, die-cast aluminum bottom shell

Certifications
Our Exhibition
Text Equipment
FAQ1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
