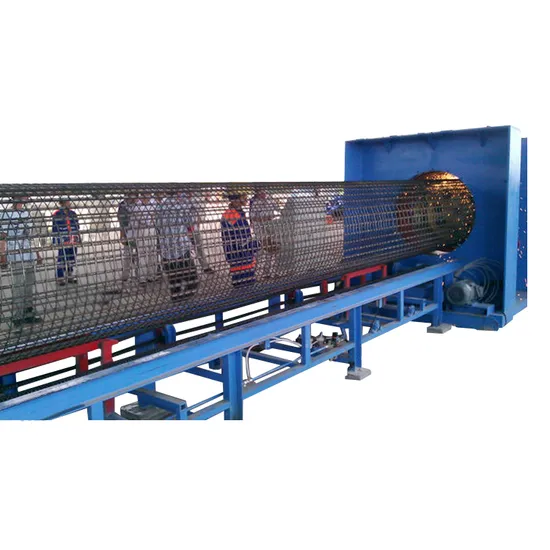

Automatic CNC Reinforce Concrete Spun Pile Cage Welding Machine

Product Description

Concrete Pile Cage Welding Machine is a special-purpose welder used to produce the high-strength
concrete pipe pile reinforcement cages. The welder is widely applied to reinforcement cage welding
by self-stressing and prestressing pretensioning method and post-tensioning method.

Techincal Parameter

Diameter of welded frame	ø250-ø1400( as users require)
Length of welded reinforcement cage	4M-15M
Number of longitudinal reinforcements	6, 7, 10 , 12, 14, etc
Diameter of longitudinal reinforcement	ø7.1, ø9.0, ø10.7, ø12.6MM
Diameter of hoop reinforcement	ø4- ø6
Cage pitch	0-200mm
Driving power	8.4KW-15.2KW
Welding power	200KVA-300KVA
Controller	CNC controller

Product Advantage 1. Host speed up to 43 r/min, is three times as much as the current domestic similar equipment.
2. Failure rate is extremely low, is 1/20 of the similar products.
3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.
4.Can cage welding square body, the function, can save factory in hooped cost USD2000-3000
5. Welding copper head loss was only about 1/30 of the similar products
6. l general manufacturers use our products to meet the production requirements, compared with similar
products to save labor costs RMB 100000 per year, energy costs about USD2000-3000.
7.Use this product than use similar equipment can save USD30000-50000.
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui machinery
manufacturing co;, all abroad (overseas) tasks and international businesswill be undertaken by "amitycare ".
We are manufacturers of cage welding machine(concrete pile,pole,pipe )centrifugal spinning machine
,concrete mould(pile ,pole,pipe) ,ring bending machine,heading machine ,endplate, ,tension jack
for pre-stress .feeding machine for different capacity welding machine ,steel wire Processing machine etc.
we also can supply setting up a new factory full line service . We have already exported various kinds of
concrete pile , pole and pipe concern making machines to overseas countries and regions such as indonesia,
parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
