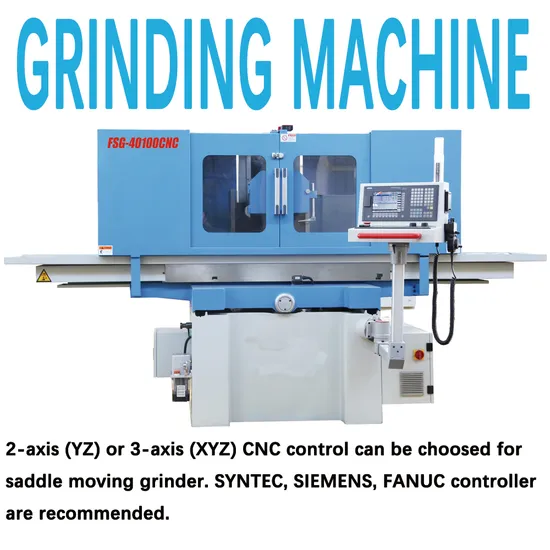

CNC Series Saddle Moving Grinder Surface Grinding Machine
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CNC
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Condition
New
Transport Package
Wooden Case
Trademark
OEM
Origin
China
Production Capacity
10000sets/Year
Product Description
• 2-axis (YZ) or 3-axis (XYZ) CNC control can be choosed for saddle moving grinder. SYNTEC, SIEMENS, FANUC controller are recommended.
• Elaborately-designed closed safe guard with safety-switch, not only fave good apperance but also safety operaing field.
• Precision grind spindle with preload high precision angular ball bearing and drive by V3 motor, runs in maintenane-free, low vibration, and no noise.
• CNC-2 model: YZ axis numerical control and linkaged, drove by AC servo motor and ball screw. X axis drove by hydraulic.
• CNC-3 model: XYZ axis numerical control and linkaged, drove by AC servo motor and ball screw.
| SPECIFICATION | Model | |||
| FSG-2550CNC | FSG-30100CNC | FSG-40100CNC | ||
| Table Size | mm | 254x508 | 305x1020 | 406x1020 |
| Magnetic Chuck Size | mm | 250x500 | 300x1000 | 400x1000 |
| Max. Distance From Spindle Center To Table | mm | 450 | 580 | |
| Max. Loading Capacity (Include Chuck) | kg | 200 | 400 | 600 |
| X Axis Feed | ||||
| Feed Speed | m/min | 5~18 / CNC-3 (5-25 / CNC-2) | ||
| Micro Feed Rate | mm | 0.005 / CNC-3 (-- / CNC-2) | ||
| Y Axis Feed | ||||
| Feed Speed | m/min | 0~1 | ||
| Micro Feed Rate | mm | 0.005 / CNC-3 | ||
| Z Axis Feed | ||||
| Feed Speed | m/min | 0~1 | ||
| Micro Feed Rate | mm | 0.005 | ||
| Spindle Rotating Speed | r/min | 2850(50hz) / 3450(60hz) | 1450(50hz) / 1750(60hz) | |
| Grind Wheel Size | mm | 200x20x31.75 | 350x40x127 | |
| Spindle Motor Power | kw | 2.2 | 4 | |
| Floor Space (L*W*H) | mm | 2800x2000 | 5000x2400 | |
| Gross Weight | kg | 1900 | 3500 | 4400 |
| Package Size | mm | 2200x2000x2150 | 3750x2250x2250 | |
