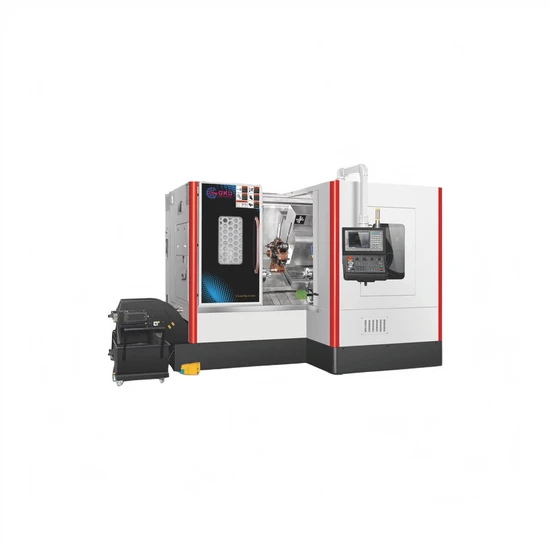

High Performance Dual Spindles CNC Lathe Center with 10 Axis Control

Product Description

Introducing the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center, a pinnacle of engineering excellence designed to redefine precision and productivity in your machining operations. This state-of-the-art machinery brings groundbreaking innovation to the forefront, promising to elevate your production capabilities with seamless efficiency and unmatched reliability. CNC (Computer Numerical Control) turning lathes have utterly transformed the landscape of modern manufacturing, offering unparalleled precision and remarkable efficiency within the production process. These sophisticated machines boast the capability to perform an extensive array of operations, including drilling, tapping, turning, and boring, with unmatched accuracy. Widely utilized across diverse industries such as automotive, aerospace, medical, and electronics, CNC turning lathes are instrumental in crafting intricate and high-precision components that meet the stringent demands of today's advanced technological applications. With their remarkable adaptability, these lathes are essential in the production of components that require exact specifications, ensuring the highest standards of quality and performance.
In this comprehensive article, we delve into the intricate components that make up a CNC turning lathe, unraveling its sophisticated working principles and exploring its diverse applications across multiple cutting-edge industries. Discover how these advanced machines are engineered for excellence, offering an in-depth understanding of the technology that powers modern manufacturing.
Product Parameters

Model	LM-10SY-III
Double spindle/Double power turrets
Number of axis	10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+TD+D2)
Max turning diameter on the bed	Ф450mm
Max processing length	400mm
Max processing diameter	Ф300mm
Main spindle nose	ANSI A2-6
Main spindle hole	Ф82mm
Bar hole diameter	Ф70mm
Main spindle speed	1-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	ANSI A2-4/A2-5
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	1-5000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	11KW
X1/X2 axis power	3.1KW
Y1/Y2 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power(milling axis)	3.1KW
D2 Axis	2.4KW
Hydraulic pump motor power	2.2KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Turret Outer diameter shank	25mm
Turret Inside diameter shank(Boring tool)	Ф32mm
Slider Outer diameter shank	20mm
Slider Inside diameter shank	Ф20mm
TD axis live tools milling speed	0-4000rpm
End milling tool specification	4*ER20
X1/X2/Y1/Y2/Z1/Z2 axis rapid speed	25m/min
X1/X2 axis travel	560mm/590mm
Y1/Y2 axis travel	150mm/150mm
Z1/Z2 axis travel	540mm/330mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.003mm
X/Y/Z/Z1 axis position accuracy	0.002mm
Oil tank capacity	60L
Cooling tank capacity	95L
Machine weight	5800KG
Machine size	2600*2200*2250mm
Controller	Syntec 200TB

Company Profile
For countless years, GKD (Mingju) has passionately dedicated itself to harmonizing resources, pioneering cutting-edge technologies, and relentlessly striving to deliver unparalleled quality to our esteemed global clientele.
GKD, an illustrious conglomerate, excels in the research, development, and manufacturing of premier CNC machining centers. Strategically nestled near Hong Kong, China, a locale celebrated as the "World Factory", GKD proudly stands at the forefront of innovation. Complementing this is our esteemed European headquarters in Italy (Taiwan), establishing a robust global sales and service network. Our expansive enterprise boasts five prolific production bases situated in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our flagship suite includes state-of-the-art vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, alongside a plethora of high-end CNC machine tools and production lines. We have ascended as a paramount manufacturer in China, showcasing a comprehensive industrial chain of CNC metal cutting machine tools. Our exquisite products find applications across diverse sectors such as aerospace, mold manufacturing, automotive, energy, marine, engineering machinery, and 3C electronic products, cementing our reputation as a leader in the manufacturing industry.
GKD Group is unwavering in its mission to deliver premium products coupled with all-encompassing solutions. We ardently embrace the tenets of high-speed, precision, and efficiency in intelligent equipment, offering exemplary solutions that resonate with the discerning needs of our clientele, ensuring unparalleled cost-effectiveness. Boasting formidable manufacturing prowess and robust after-sales service, GKD has extended an extensive portfolio of products and services to numerous countries and regions, earning a prestigious global footprint.
GKD Group is wholeheartedly devoted to serving you with sincerity and excellence!
Our Advantages
1. Immerse yourself in an unparalleled level of professional service within the CNC machine export industry, powered by our extensive and profound expertise.2. Leveraging the cutting-edge technologies from Italy and Taiwan, we deliver extraordinary manufacturing capabilities that distinctly differentiate us from the competition.3. Select from an array of flexible payment options, including T/T, Western Union, L/C, and Paypal, crafted to perfectly align with your financial preferences.4. Take advantage of our unwavering commitment to supplying premium quality, safe materials at competitive prices, ensuring unmatched value for your investment.5. We cater to small order requests, simplifying access to our superior products and services without compromising on excellence.6. Benefit from our lightning-fast response times, guaranteeing your inquiries and needs are addressed immediately with precision.7. Our transportation methods are meticulously designed to prioritize both safety and speed, ensuring your products arrive swiftly and securely.8. We provide tailored OEM design services, fully customizable to fulfill the unique requirements of each of our esteemed customers.
Certifications
Packaging & Shipping
After Sales Service
1) The quality warranty period extends to a remarkable 12 months, starting from the moment the shipping commodity gracefully arrives at its intended port of destination. Throughout this assurance period, we pledge to furnish essential fittings at no extra charge, except in situations involving physical damage. We kindly request that any damaged fittings be sent back to us via courier at your expense before we dispatch replacement parts. Once the warranty period concludes, any necessary repairs or replacements will be your responsibility and will entail a reasonable fee. 2) Understanding the complexities of providing on-site maintenance by our engineers, we have established robust online support systems for your convenience. Whether you're involved in installation, operation, adjustment, or maintenance of the machine, you'll benefit from exhaustive technical support through channels such as email, MSN/Skype, video calls, telephone, and fax. Our dedicated team is poised to resolve any technical difficulties you may face with utmost efficiency.3) In the event that you experience issues that exceed the scope of our online support during installation, use, or adjustment, we offer an exclusive Door-to-Door service. Our highly skilled engineers can be dispatched to your location for assembly, maintenance, or adjustments. To facilitate this service, you will need to assist with visa formalities, pre-pay travel expenses, and arrange accommodation. Additionally, please ensure the availability of a translator for the duration of their visit. Alternatively, you can choose to send your engineer to our factory for comprehensive and complimentary technical training.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
