Plastic Plate Extrusion Line Fully Automatic Plastic Sheets Making Machine Hard Luggage Manufacturing

Product Description

Products Description:
Plastic Plate Extrusion Line Fully Automatic Plastic Sheets Making Machine Hard Luggage Manufacturing
Technique parameter:

Model	YX-23P
Plate thickness	1-4mm
Plate Width	1-900mm
Weight	19.5t
Total Power	215kw
Overall Dimension	18300*7000*3300mm
Yield	Around 380kg/hr
Auto Grade	Full Auto
Brand of Main Electrical Parts	Schneider,RKC,Rittal,Siemens,etc.
Diameter of Roller	450mm or customized
Diameter of Barrel	115/80/50mm or customized
Lamination Device	Included,printed film on the sheet is ok
Distribution Device	Included,more layers sheet can be made
Layers of Sheet	1-5 layers

Extrusion Screws
According to the different material features, it adopts ideal, reasonable and high-efficiency three-layers extruder, which has the characteristics of high output, good plasticizing capacity.
Mould
This mono-layer of multi-layer co-extrusion mould is adopted hanger design. It processes hard chrome plating and mirror polishing,ensuring to extrude stable, uniform, good smooth finish sheet.

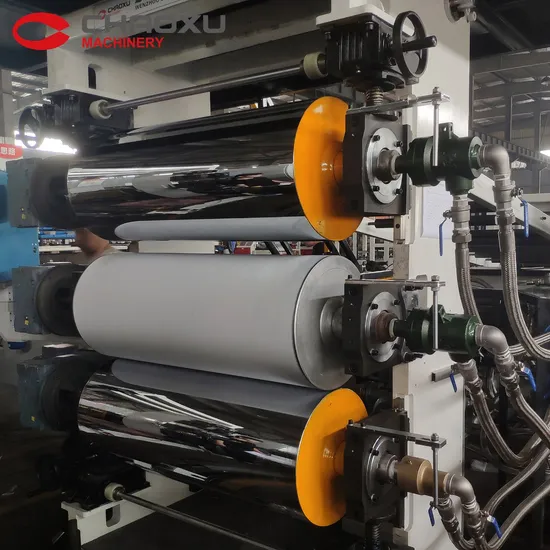

Three-roller Calender
It adopts vertical structure and the independent control of oil and water control device, to ensure precise constant temperaturecontrol. Rollers adjust the speed independently, which has the characteristics of easy operation, easy to adjust thickness ,highdensity sheet.
Haul-off Unit
It adopts the design of upper-lower cylinder pressure type,stepless frequency conversion timing, which is suitable for differentextruded speed. Tracking the length of sheet transfer,it provides strong guarantee for the stable production.
Cutter
The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting. It can cut the sheet length effectively and smoothly.
Application:
This production line is capable of continuously produce mono-layer or multi-layer ABS,PC,PP,PE,PS,PMMA,HIPS sheet. The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement, bathroom, automotive trim etc.
Exhibition:
Company Profile:
Wenzhou Chaoxu Machinery Co.,ltd has specialized in Intelligent Luggage Machinery Industry since 1992.
We became a leading brand after two decades' development and management, having a group of senior technical team. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on.
In addition, we have researched and achieved lots of national technical patents:
for example: Cursor positioning device in cutting component
Mold distributor device and Water film temperature machine device for Extrusion Machine
Lifting frame device and Drying oven device for Vacuum Forming Machine
Also, we processed CE, ISO9001:2015 certificates and owned the whole running system.
Meanwhile, we are cooperating with global famous luggage manufacturers such as Samsonite, Crown and having further relationship with suppliers ABB, Schneider, Siemens, Taiwan Weinview, Japan ORMON and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Factory View:
Certificate:
FAQ:
Q1:Are you a factory or a trading company? A1:We are the manufacturer and factory, specialized in luggage machinery industry since 1992.

Q2:Where is your factory? How can I get there?
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.

Q3:What about your main market?
A3:Our machine is sold well in 30 provinces and cities and enjoy high reputation in China. At the same time, it has been widely exported to more than 20 countries, such as Turkey, Morocco, India, Bangladesh, Algeria, Egypt, Tunisia, South Africa, Vietnam, Cambodia, Thailand, Germany, Indonesia, Lebanon, Pakistan, Brazil, Russia, etc.

Q4:How is your factory doing in quality control?
A4:Quality is the most important principle. There are at least twice test before shipment, the first is by our factory, the second test is together with customer. Thus our customers will know well about how to use the machine before it arrives at their factory. And also we will offer whole-life service. What's more, all machinery has been passed ISO and CE testing. Strictly testing the machine and arranging delivery after 100% confirmation of no problem are what we always do.

Q5:How about after sales service?
A5:We will offer all support online via video 24h per day. Before shipment, we will test machine from A to Z, and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together. And if customers need the engineer to offer support in their factory, the cost and visa should be paid and prepared by customers.
