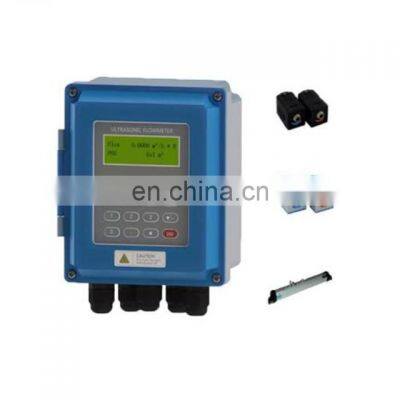

Taijia Fixed ultrasonic flowmeter tuf-2000b ultrasonic flowmeter clamp on ultrasonic water flow meter

Product Description

Product Description
TUF-2000B fixed type ultrasonic underwater flow meter PVC pipe for water flow Introduction of Ultrasonic flow meterTUF-200B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc. Specifications of Ultrasonic flow meterItemsPerformance &ParameterConvertorPrincipleTransit-time ultrasonic flowmeterAccuracy±1%Display2x20 character LCD with backlight, support the language of Chinese, English, Italy, TurkishSignal output1way 4-20mA output, electric resistance 0-1K, accuracy0.1%1 way OCT pulse output(Pulse width-1000ms, default is 200ms))1 way Relay outputSignal input3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid levelConnect the temperature transducer P100, can finish the heat/energy measurement.Data InterfaceInsulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.Special CableTwisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000mPipe Installation ConditionPipe materialSteel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowedPipe diameter25-6000mmStraight pipeTransducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.Measuring MediumType of liquidSingle liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etcTemperature-30-160℃TurbidityNo more than 10000ppm and less bubbleFlow rate0-±7m/sTemperatureConvertor; -20-60℃; Flow Transducer: -30-160℃HumidityConvertor: 855RH; Flow Transducer: can measure under water, water depth≤2mWorking EnvironmentTemperatureConvertor; -20-60℃; Flow Transducer: -30-160℃HumidityConvertor: 855RH; Flow Transducer: can measure under water, water depth≤2mPower SupplyDC8-36V or AC85-264V(Optional)Power Consumption1.5WDimension132*150*85mm(convertor) TypesSpec. Model Measure range(mm)TemperatureClamp on Small TS-2DN15~100-30~90℃Medium TM-1DN50~700-30~90℃Large TL-1DN300~6000-30~90℃High temperature clamp on Small TS-2-HTDN15~100-40~160℃Medium TM-1-HTDN50~700-40~160℃Large TL-1- HTDN300~6000-40~160℃Mountingbracket clamp onSmall HSDN15~100-30~90℃Medium HMDN50~300-30~90℃Large EB-1DN300~700-30~90℃Hightemperature mounting bracket clamp onSmall HS-HTDN15~100-40~160℃Medium HM-HTDN50~300-40~160℃LargeEB-1-HTDN300~700-40~160℃Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you. FAQFAQ for Our Company1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment. 2. MOQ:1set 3. We accept T/T. Western Union.PayPal & Secure Payment 4. We offer 18 Month's Warranty on all product 5. Service express company:TNT/DHL/FedEX.---------------------------------------------------------Welcome to our website! -------------------------------------------
